Aerpro AKTO45 | 9/10" Install Kit Suit Toyota Kluger Grande 2007 - 2013 (Compatible With Pioneer DMH-AP6650BT & Kenwood DMX80AXS)

Upgrade Your Toyota Kluger Grande (2007–2013) With A 9"/10" Head Unit!

9"/10" Headunit Installation Kit
The Aerpro AKTO45 Installation Kit includes all the components required to install a 9" or 10" trapezoid-shaped radio into your Toyota Kluger Grande (2007–2013) with factory navigation but without factory amplifier, while retaining important features such as Steering Wheel Control functionality and factory reverse camera (if equipped).

Note: Head unit ISO harness is not included in the kit. It is recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Important Information:

• Developed to suit universal trapezoid-shaped head units such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X & AM10X, and various Android head units.
• Not compatible with standard DIN or double DIN sized radios.
• This kit does not support Pioneer CAN Bus features but includes a steering wheel control adapter. On boot-up, go to Menu → Steering Wheel Control → With Adapter.
• Feature retention may vary depending on the radio model used.

Vehicle Compatibility:

• Toyota Kluger 2007–2013 "Grande" with factory navigation but without factory amplifier

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Yes (if equipped)
• AUX Input: No
• USB Input: No
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: No

Features:

• To suit Toyota Kluger Grande (2007–2013) with factory navigation but without factory amplifier
• Includes all required components for seamless installation
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
• Compatible with Aerpro APP8 aftermarket head unit harness adapters for simplified installation

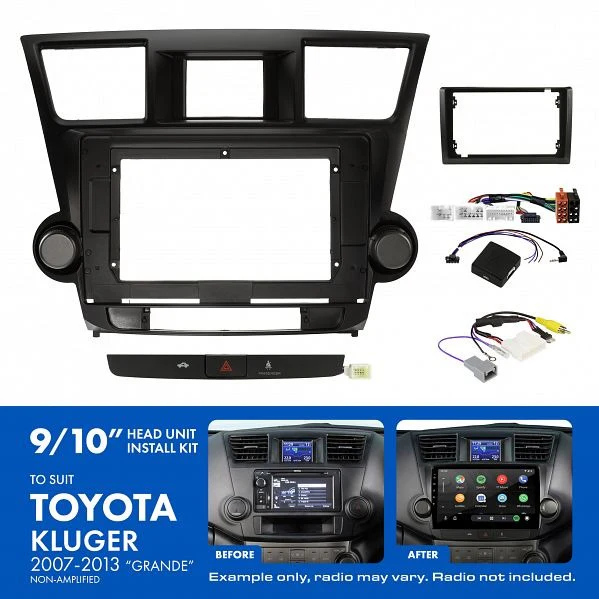

Kit Inclusions:

• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Adaptor to allow for 9" and 10" radios to be installed
• Antenna Adaptor
• Camera Retention Adaptor
• Hazard Switch
