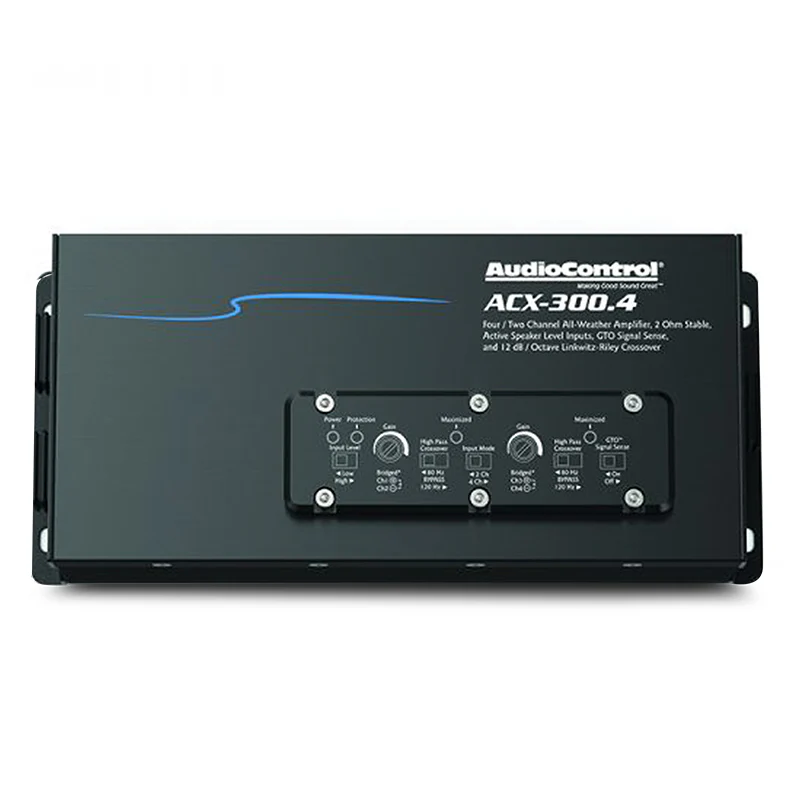

AudioControl ACX-300.4 ACX Series 4 Channel Amplifier
AudioControl’s ACX-300.4 All-Weather Amplifier Delivers Honest Power Levels to The Sound System in Your Boat, UTV, Motorcycle & More!
Small Foot Print
Trying to find room for an amplifier in your vehicle is always a task, especially in small vehicles. AudioControl’s range of ACX Amplifiers are designed for this exact reason. Don’t let extreme conditions get in the way of rocking out to your favourite sound track on your next overland or seagoing adventure. Designed to withstand the elements, these small footprint amplifiers are the perfect solution for your next adventure.
Big On Power
Don’t let the small size of the ACX Amplifiers fool you. They may be small but the ACX-300.4 packs a punch with conservative 75w RMS per channel, enough to power 4 speakers with ease. Need to just run a pair of high powered speakers? The ACX Amplifier can also be used as a 2 Channel amplifier! Featuring the same technology and design of its larger brother the AudioControl LC Series, the ACX Series offer smooth, clean and detailed audio output to keep any audiophile happy.
Outdoor Proof Connections
Unlike regular amplifiers, the AudioControl ACX Series amplifiers feature waterproof quick connect style connections and a solid aluminum extrusion construction. Sealed tight from the elements, these ACX amplifiers feature a IPX6 rating great for use with Marine and off road applications without loss of audio quality.
Specifications:
- Inputs
- Preamp Inputs: 4 Balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 4
- Speaker Level Input Voltage Range: 1 V – 12 Vrms
- Outputs
Rated Continuous (RMS) Power at 14.4V:- 4 Ω – 50 W x 4 RMS
- 2 Ω – 75 W x 4 RMS
- 4 Ω – 150 W x 2 RMS
- Performance
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.2%
- IPX Rating: IPX6
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
Important Product Compatibility Information:
- Rated Continuous (RMS) Power @ 14.4v: 4Ω – 50w x 4 RMS / 2Ω – 75w x 4 RMS / 4Ω – 150w Bridged
- High level Input Voltage: 12 V rms (120 Watts Per Channel)
- Input Channels: 4 Channel RCA + 4 Channel High Level
- RCA Pre-Outs: None
- Remote Turn On Feature: Yes
- Total Harmonic Distortion Rating: < 0.2%
- Crossover Frequency: Selectable 80Hz / 120Hz / Bypass
- Crossover Type: Independent 12 dB Linkwitz-Riley Crossovers
- Dimensions: 9.4″W x 3.0″D x 1.75″H
What's in The Box:
- 1x Amplifier
- 1x 7″ Speaker Harness’s (Bare Wire)
- 1x 7″ Power Harness (Bare Wire)
- 1x Mounting Screws
- 1x 2 Rubber Grommets
- 1x Manual
- 1x Awesomeness
Description
AudioControl’s ACX-300.4 All-Weather Amplifier Delivers Honest Power Levels to The Sound System in Your Boat, UTV, Motorcycle & More!
Small Foot Print
Trying to find room for an amplifier in your vehicle is always a task, especially in small vehicles. AudioControl’s range of ACX Amplifiers are designed for this exact reason. Don’t let extreme conditions get in the way of rocking out to your favourite sound track on your next overland or seagoing adventure. Designed to withstand the elements, these small footprint amplifiers are the perfect solution for your next adventure.
Big On Power
Don’t let the small size of the ACX Amplifiers fool you. They may be small but the ACX-300.4 packs a punch with conservative 75w RMS per channel, enough to power 4 speakers with ease. Need to just run a pair of high powered speakers? The ACX Amplifier can also be used as a 2 Channel amplifier! Featuring the same technology and design of its larger brother the AudioControl LC Series, the ACX Series offer smooth, clean and detailed audio output to keep any audiophile happy.
Outdoor Proof Connections
Unlike regular amplifiers, the AudioControl ACX Series amplifiers feature waterproof quick connect style connections and a solid aluminum extrusion construction. Sealed tight from the elements, these ACX amplifiers feature a IPX6 rating great for use with Marine and off road applications without loss of audio quality.
Specifications:
- Inputs
- Preamp Inputs: 4 Balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 4
- Speaker Level Input Voltage Range: 1 V – 12 Vrms
- Outputs
Rated Continuous (RMS) Power at 14.4V:- 4 Ω – 50 W x 4 RMS
- 2 Ω – 75 W x 4 RMS
- 4 Ω – 150 W x 2 RMS
- Performance
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.2%
- IPX Rating: IPX6
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
Important Product Compatibility Information:
- Rated Continuous (RMS) Power @ 14.4v: 4Ω – 50w x 4 RMS / 2Ω – 75w x 4 RMS / 4Ω – 150w Bridged
- High level Input Voltage: 12 V rms (120 Watts Per Channel)
- Input Channels: 4 Channel RCA + 4 Channel High Level
- RCA Pre-Outs: None
- Remote Turn On Feature: Yes
- Total Harmonic Distortion Rating: < 0.2%
- Crossover Frequency: Selectable 80Hz / 120Hz / Bypass
- Crossover Type: Independent 12 dB Linkwitz-Riley Crossovers
- Dimensions: 9.4″W x 3.0″D x 1.75″H
What's in The Box:
- 1x Amplifier
- 1x 7″ Speaker Harness’s (Bare Wire)
- 1x 7″ Power Harness (Bare Wire)
- 1x Mounting Screws
- 1x 2 Rubber Grommets
- 1x Manual
- 1x Awesomeness
