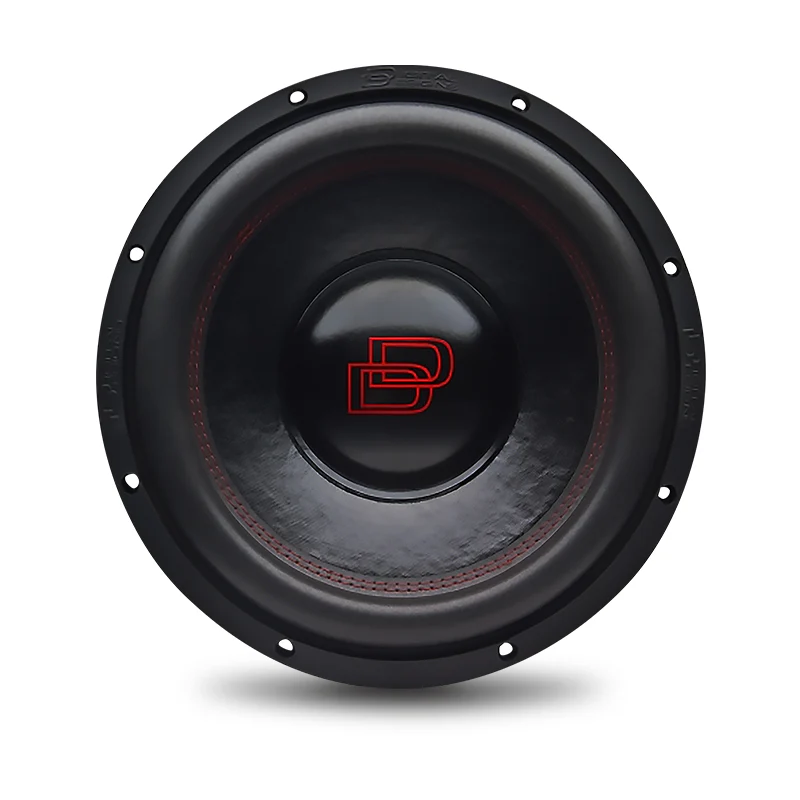

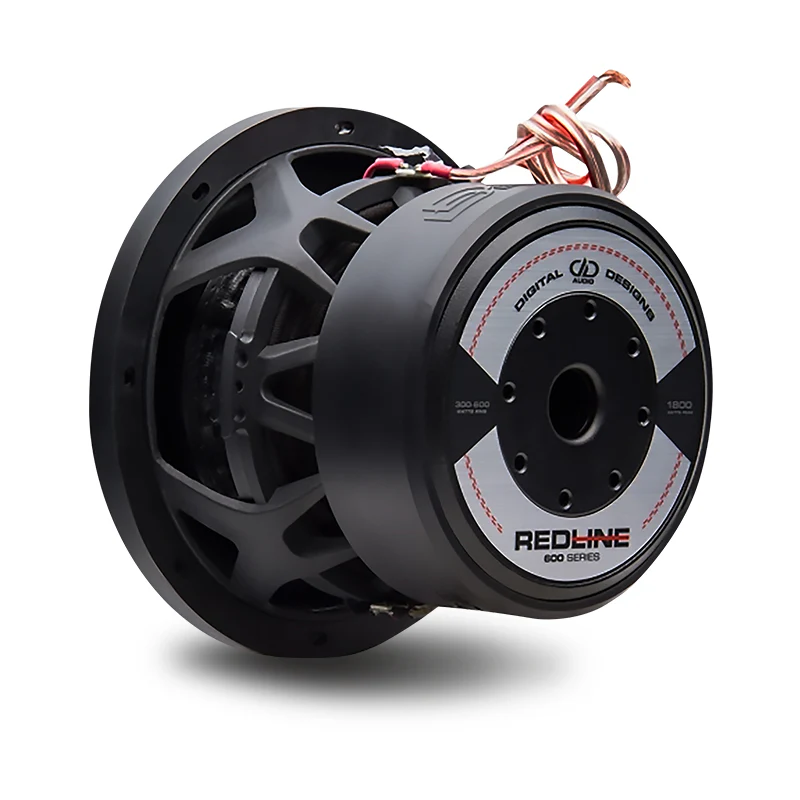

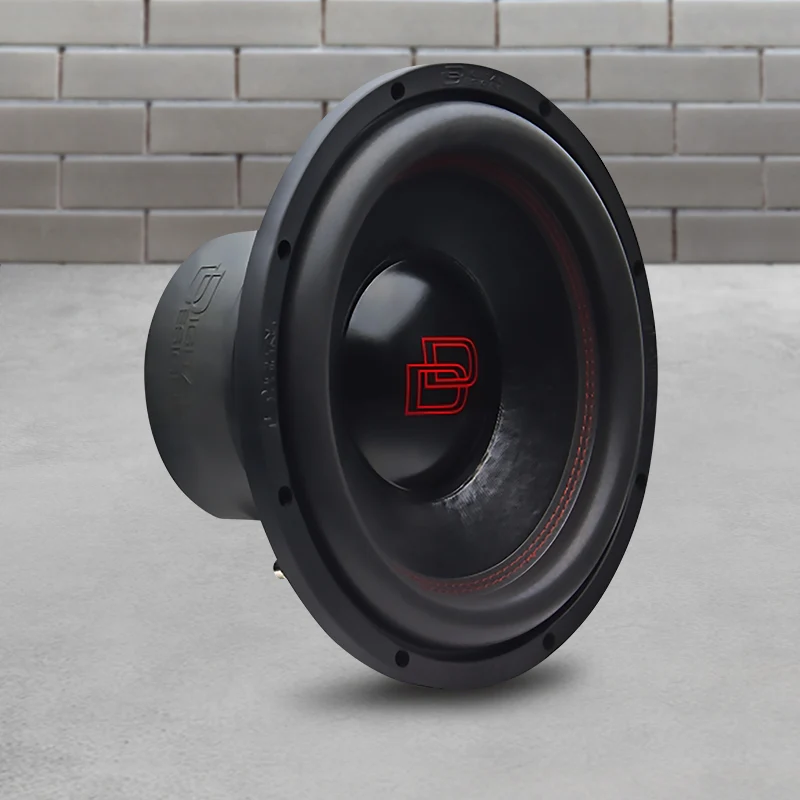

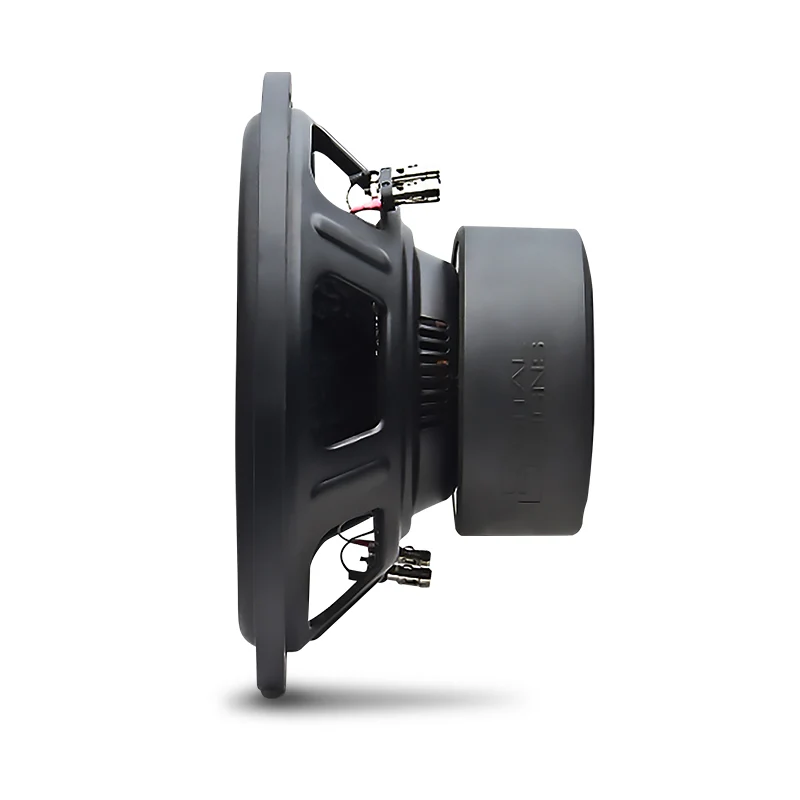

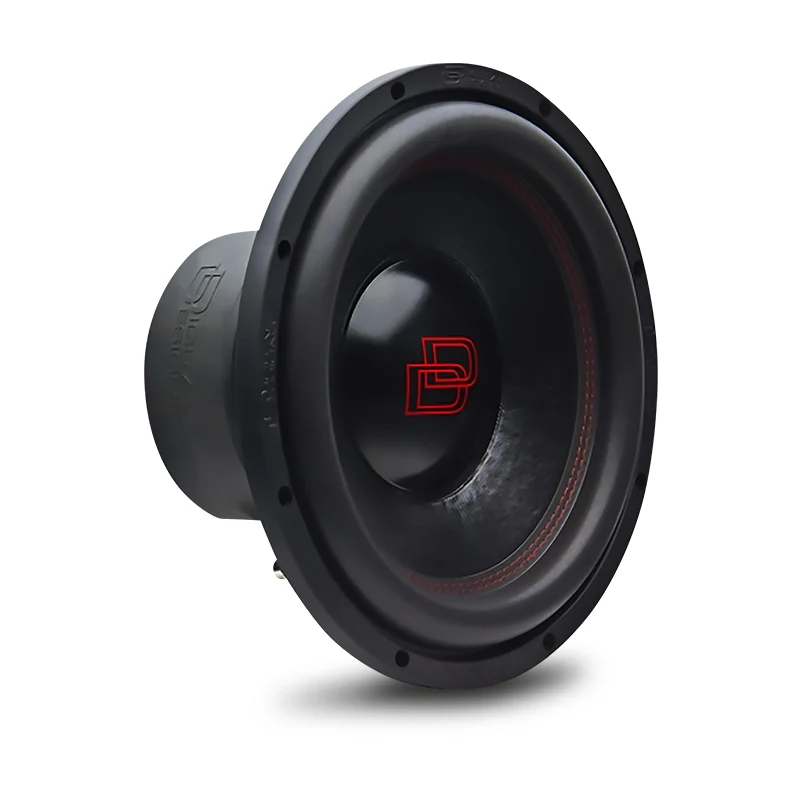

DD Audio DD-615E 15" 1800W 600 Series Power Tuned Subwoofer

DD Audio 15" 1800W 600 Series Power Tuned Subwoofer: Perform Like a Boss on as Little as 300-600 Watts!

15" 600 Series Power Tuned Subwoofer

The 600 Series is a great entry point for a higher performance system design that keeps the vehicle as close to stock as possible. These subs will perform like a boss on as little as 300-600 Watts, meaning even multiple woofer systems can be driven with one moderate powered amplifier.

This keeps electrical upgrades minimal with less added strain on the vehicle. With a high energy, double stack motor paired with a laminated triple layer poly cotton spider suspension the 600 Series works best with vented and multi-order enclosures.

Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product. Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.

DD Audio 615E Features:

• EROM Surround
• High-Temp, 2.5”, Voice Coil
• Triple Layer Deep bass, high excursion spider system
• Unique glass fiber and natural pulp cone
• Back Plate Coil Gap Venting
• Extended Pole Piece
• DD Stamped Steel Basket (610-612)
• DD Cast Basket (608)

DD Audio 615E Specifications:

• Driver Size: 15"
• RMS: 300 - 600W
• Peak Power: 1800W
• VCD: 2.5
• Impedance: D2 / D4
• Piston Diameter: 12 3/4"
• Fs: 26.92Hz
• QMS: 3.965
• QES: 0.8204
• QTS: 0.6797
• Vas: Liters 114.4
• Xmech: 60mm
• Xmax: 13mm
• Frame OD: 15 1/4"
• Frame OD With Gasket: 15 3/8"
• Mounting Diameter: 13 7/8"
• Mounting Depth: 7"
• Motor Diameter: 6 1/2"
• Motor Depth: 2 1/2"
• Woofer Displacement: 0.15 Cu Ft.
• Ported Enclosure: 3.0 - 5.0 Cu Ft.
• Shipping Weight: 9.53kg (21.0 Lbs.)
