DNA RCL170 CMOS Reverse Camera Large Butterfly Mount - PAL/NTSC
Designed & Built Robust For 4WD, Recreational & Trade Applications

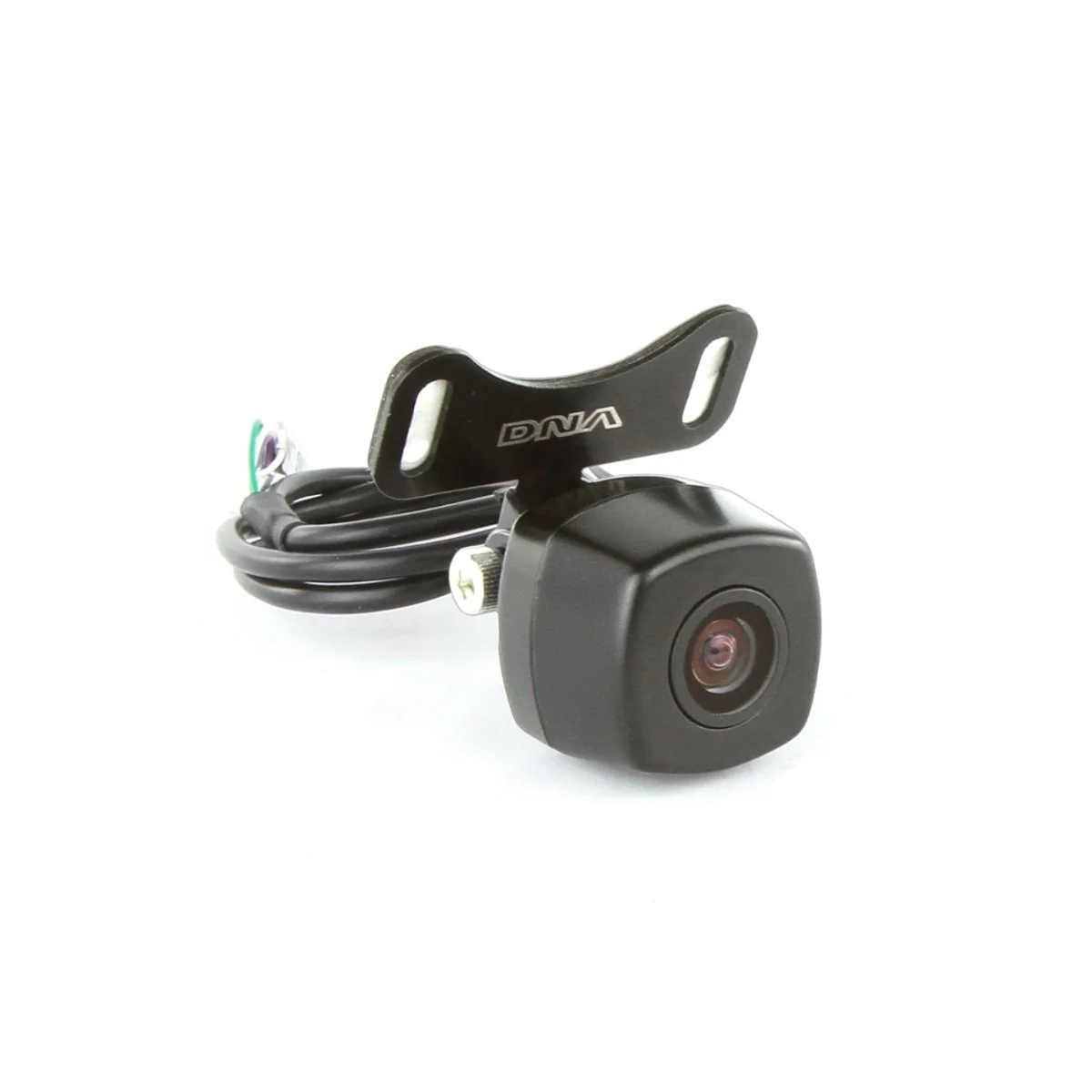

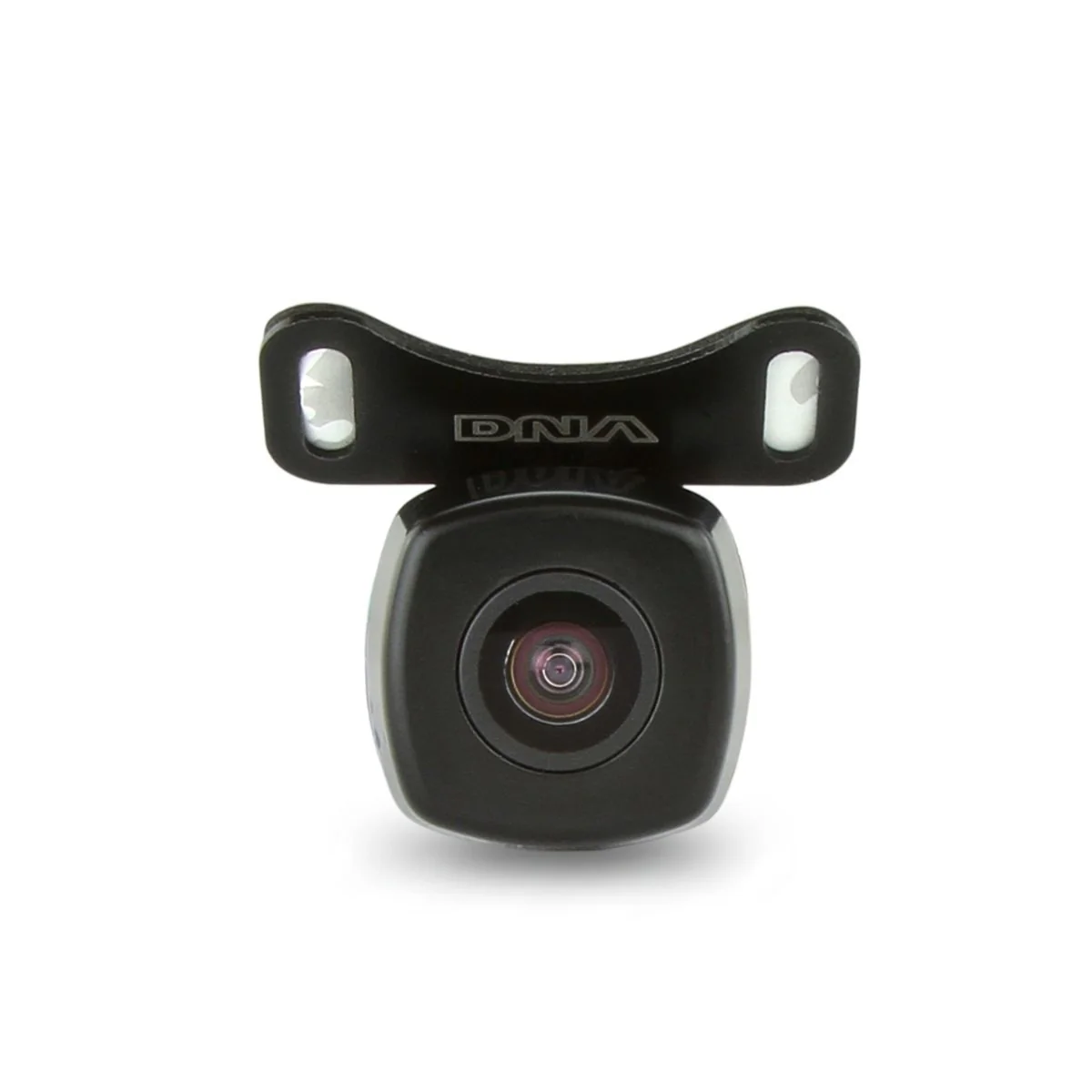

CMOS Reverse Camera Butterfly Mount.
Model Strengths:
- Heavy Duty Robust Design
- Zinc Alloy Housing
- PAL / NTSC Selectable (By Default Set To PAL. To Select NTSC Cut The Wire)
- Parking Guide Lines
- Mirror Image
Features:
- Selectable Options Includes PAL/NTSC Video Format, Parking Guide Lines & Reverse Mirror Imaging.
- Camera Also Includes a Butterfly Mount & Has A Waterproof IP68 Rating.
- Ideal For 4WD & Trade Vehicles That Get Knocked About Where A Tough Camera Is Needed.
Specifications:
Image Sensor: CMOS
Video System: PAL or NTSC (Selectable)
Scanning area: 4.88mm*3.67mm
Resolution: 976(H)*592(V)
Horizontal Resolution : 700 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =45.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC6V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Camera Body Size: 28mm W x 22mm H x 22mm D
Butterfly Base Size: 44mm L x 18mm W
Original: $70.83
-65%$70.83
$24.79
Description
Designed & Built Robust For 4WD, Recreational & Trade Applications
CMOS Reverse Camera Butterfly Mount.
Model Strengths:
- Heavy Duty Robust Design
- Zinc Alloy Housing
- PAL / NTSC Selectable (By Default Set To PAL. To Select NTSC Cut The Wire)
- Parking Guide Lines
- Mirror Image
Features:
- Selectable Options Includes PAL/NTSC Video Format, Parking Guide Lines & Reverse Mirror Imaging.
- Camera Also Includes a Butterfly Mount & Has A Waterproof IP68 Rating.
- Ideal For 4WD & Trade Vehicles That Get Knocked About Where A Tough Camera Is Needed.
Specifications:
Image Sensor: CMOS
Video System: PAL or NTSC (Selectable)
Scanning area: 4.88mm*3.67mm
Resolution: 976(H)*592(V)
Horizontal Resolution : 700 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =45.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC6V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Camera Body Size: 28mm W x 22mm H x 22mm D
Butterfly Base Size: 44mm L x 18mm W
