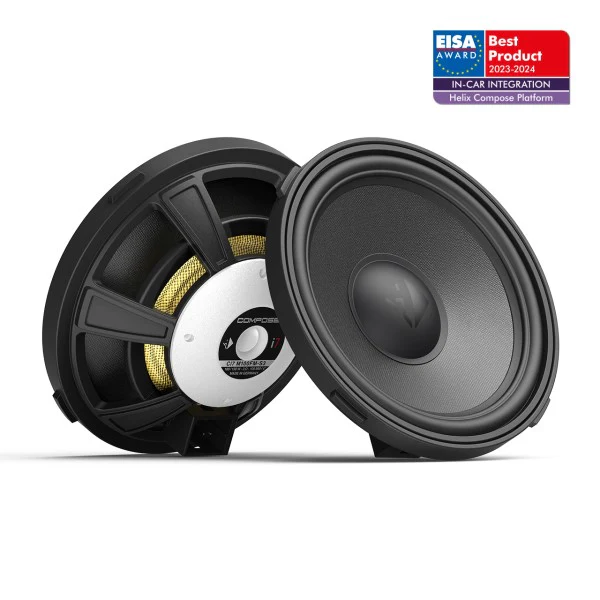

HELIX COMPOSE Ci7 M100FM-S3 | 4" High-End Midrange Speaker | COMPOSE i7 Series

HELIX COMPOSE Ci7 M100FM-S3 | 4" High-End Midrange Speaker | COMPOSE i7 Series

Universal Speakers Evolved. COMPOSE Technology.

Experience uncompromising high-end midrange performance with HELIX COMPOSE Ci7 M100FM-S3's German-engineered design—featuring handmade UHD crafted paper cone, FlexMount100 compatibility, and FlexConnect terminal for outstanding impulse response and unmatched frequency response.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. Our HELIX COMPOSE i7 series represents uncompromising high-end for an outstanding sound experience in the automobile, with obvious influence of the high-end sister brand BRAX, completely made in Germany and optimized for uncompromising music enjoyment. With notable influence from BRAX and our uncompromising high-end philosophy, only the highest quality components are used, such as the proprietary, handmade UHD (Ultra High Damping) paper cone, manufactured in a particularly complex process that guarantees optimal frequency and impulse response for incomparable music enjoyment.

COMPOSE Ci7 M100FM-S3 Features:

• 4" / 100 mm high-end midrange speaker which combines outstanding sound performance with versatile physical integration options
• High efficiency and 3 Ohms technology for maximized power output of the amplifier
• Ultra High Damping (UHD) crafted paper cone for outstanding impulse response and unmatched frequency response
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Specially shaped rubber surround for high linear cone excursion
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• 1" / 25 mm voice coil ensures minimum thermal compression and high power handling
• Automotive grade FlexConnect terminal for fast, secure and fail-safe connection
• Powerful push-pull neodymium magnet system for highest efficiency and extremely low distortion
• Universal FlexMount100 mounting ring (with standard 4-point mounting) included in delivery
• Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• Made in Germany
• Handmade UHD paper cone with BRAX high-end influence
• Complex manufacturing process for superior cone performance
• FlexConnect technology for direct original wiring harness connection
• Reverse polarity protection through FlexConnect system
• Uncompromising high-end philosophy with German engineering excellence


Specifications:

• Power Handling RMS/Max: 100/150 Watts
• Impedance: 3Ω
• DC Resistance (Re): 3.0Ω
• Frequency Response: 110 Hz - 7,000 Hz
• Resonance Frequency (Fs): 85 Hz
• Mechanical Q Factor (Qms): 4.58
• Electrical Q Factor (Qes): 0.52
• Total Q Factor (Qts): 0.47
• Compliance (Cms): 590 µm/N
• Equivalent Air Volume (Vas): 2.5 L
• Force Factor (B*I): 4.3 Tm
• Sensitivity: 91 dB @ 2.83V/1m, 87 dB @ 1W/1m
• Cone Area (Sd): 55 cm²
• Moving Mass (Mms): 5.9 g
• Cone Material: Ultra high damping (UHD) crafted paper cone
• Mechanical Resistance (Rms): 0.69 kg/s
• Voice Coil Diameter: 25mm
• Voice Coil Winding Height: 5.5mm
• Max Linear Excursion (Xmax): ±1.3mm
• Outer Diameter: 98mm / 3.86"
• Outer Diameter with Universal Mounting Ring: 104.5mm / 4.11"
• Installation Diameter: 89mm / 3.50"
• Installation Depth: 26.9mm / 1.06"


Compatibility:

• FlexMount100
• FlexConnect Inlays


Scope of Delivery:

• 2 x Ci7 M100FM-S3
• 2 x Universal FlexMount100 (with standard 4-point mounting)
• 2 x FlexConnect inlay A
• 2 x Universal connection cable
• 2 x Crossover connection cable
• 2 x Mounting material


Perfect for:

• High-end audiophile installations, German-engineered premium systems, professional installations, FlexMount100 compatible vehicles, component system builds requiring superior midrange performance, HELIX and MATCH amplifier systems, and any installation demanding uncompromising high-end midrange performance with UHD crafted paper cone technology.
