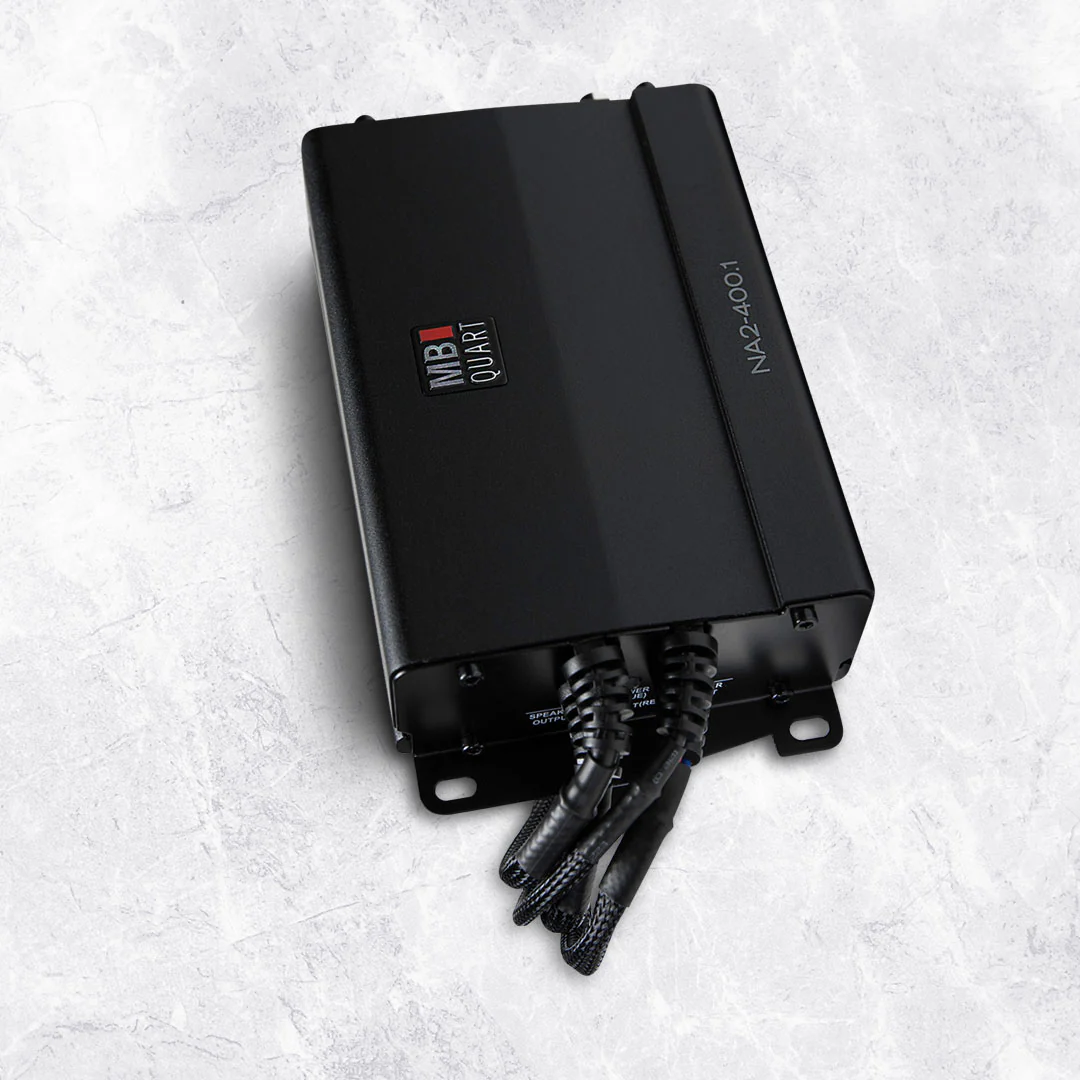

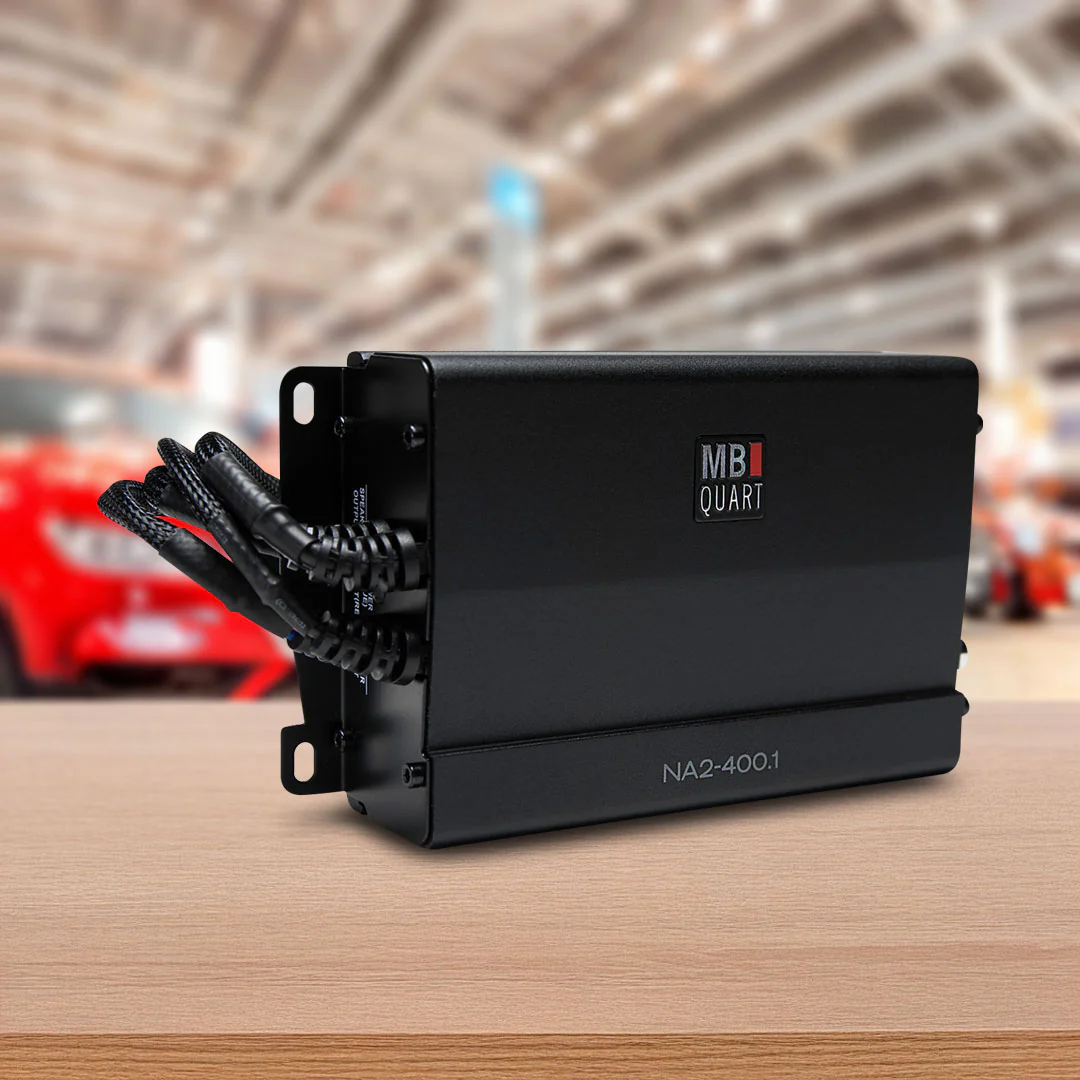

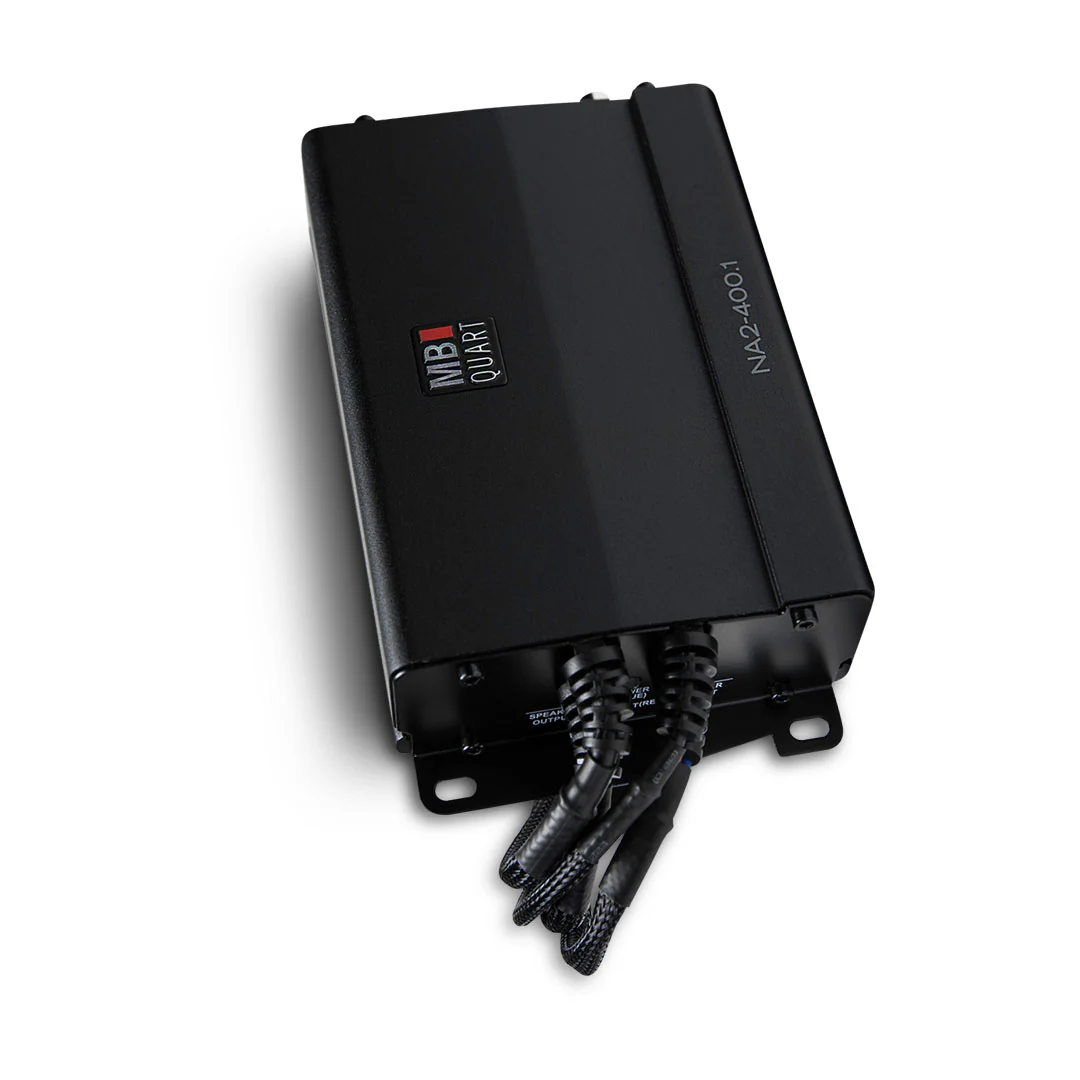

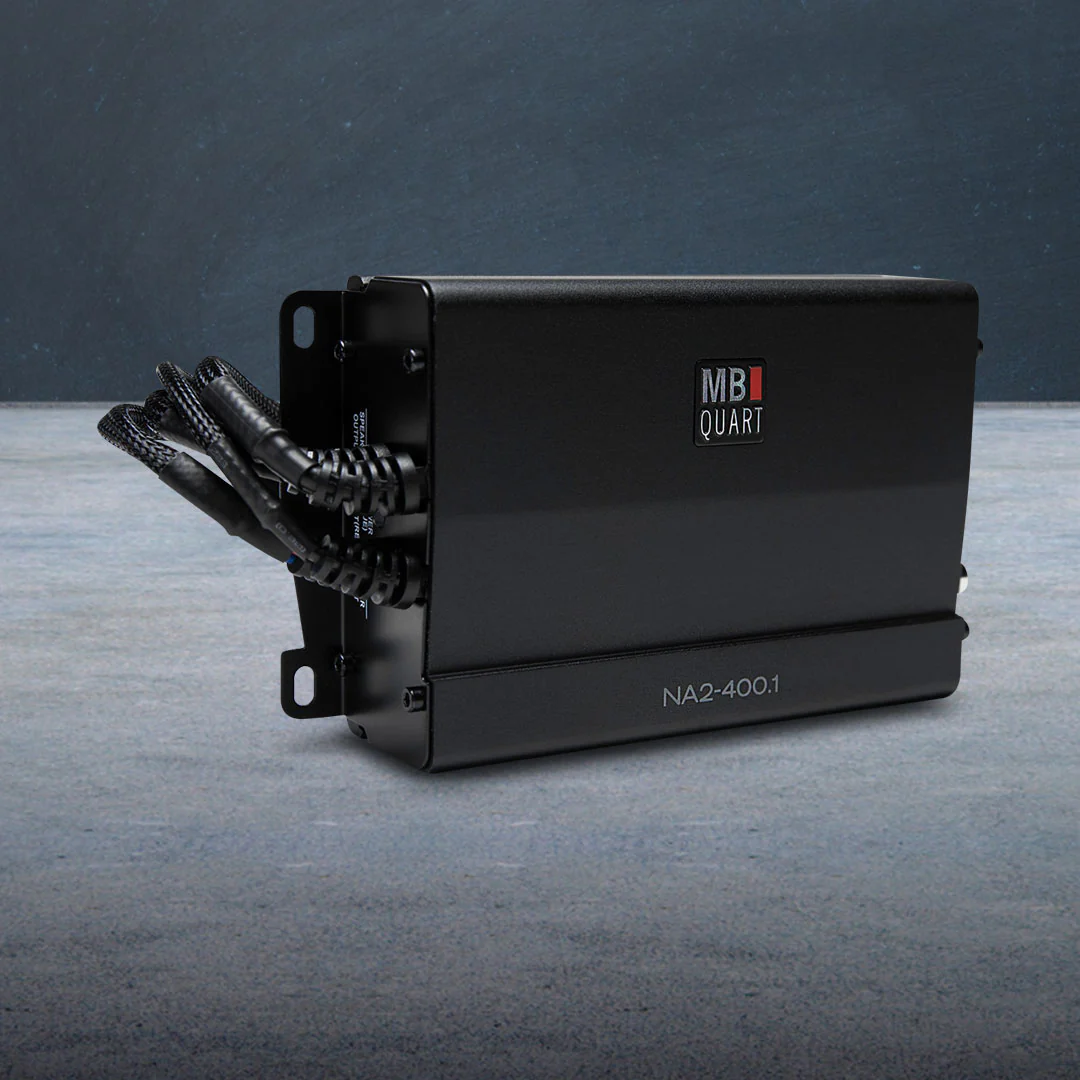

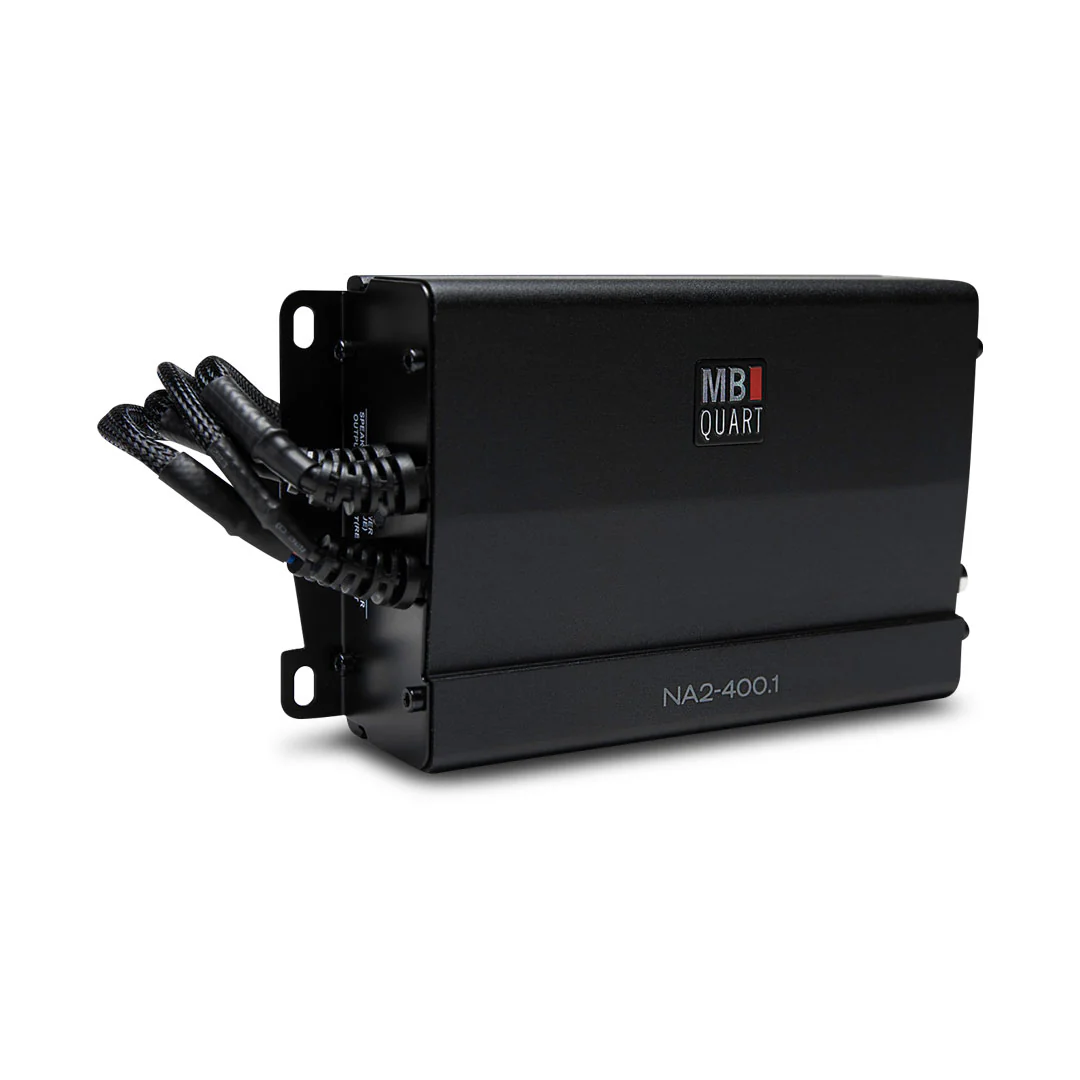

MB Quart MBQ-NA2-400.1 | 400 Watt Amplifier | Mono NA2 Powersports

Single Channel. Massive Impact – MB Quart 1 x 400W Compact Powersports Amplifier for Deep, Focused Bass!

1 x 400 Watt Compact Powersports Amplifier.

Specifications:

• Colour: Black
• Warranty: 2 Years
• Amp Class: Full Range Class D
• Amp Total Channels: Mono
• Amp Max Power (watts): 400
• Amp Power @ 2 Ohm (ch x watts): 1 x 400
• Amp Power @ 4 Ohm (ch x watts): 1 x 200
• Amp Crossover: Electronic
• Amp Variable High Pass Crossover 12dB per Octave: 300Hz
• Amp Variable Low Pass Crossover 12dB per Octave: –

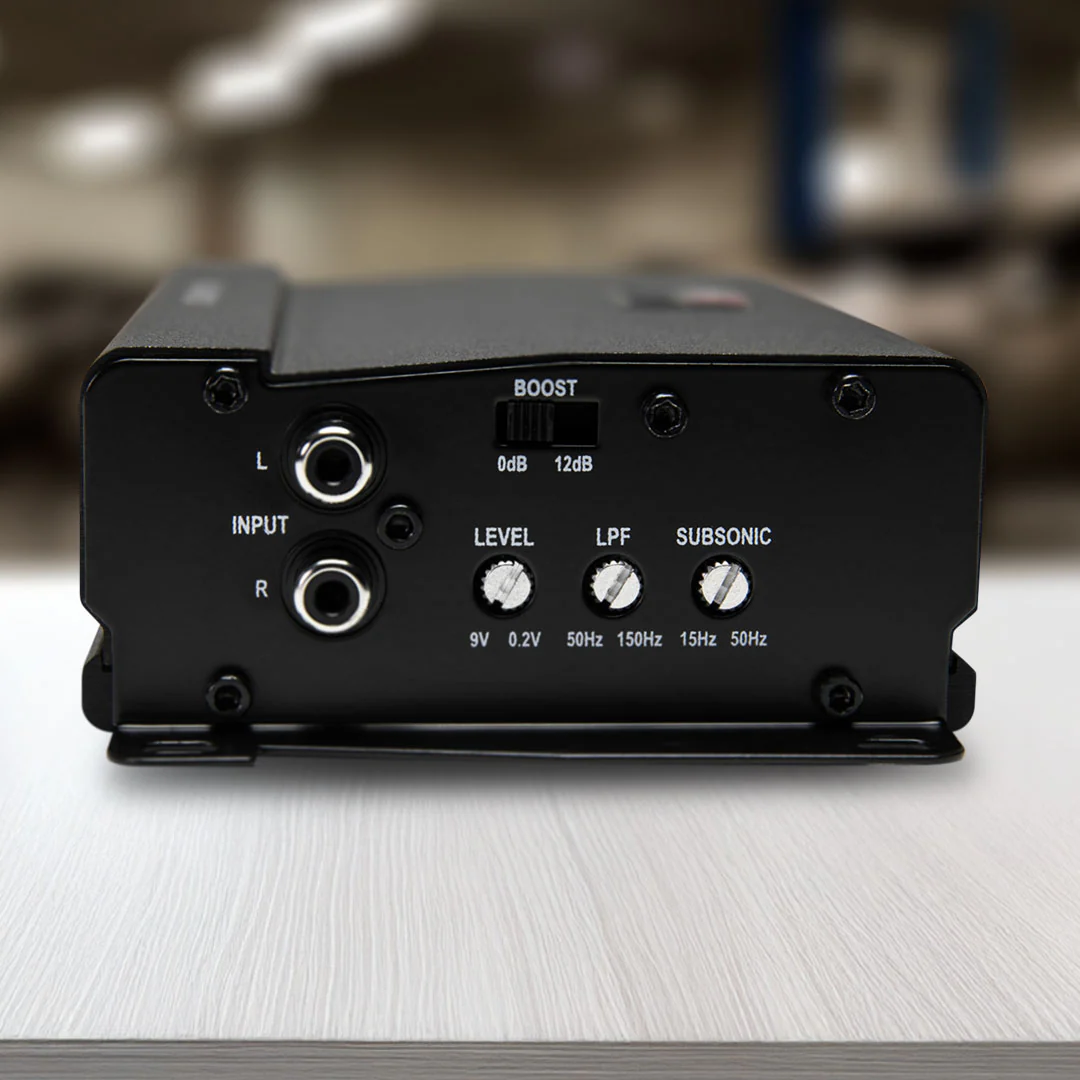

• Amp Subsonic Filter: 60Hz

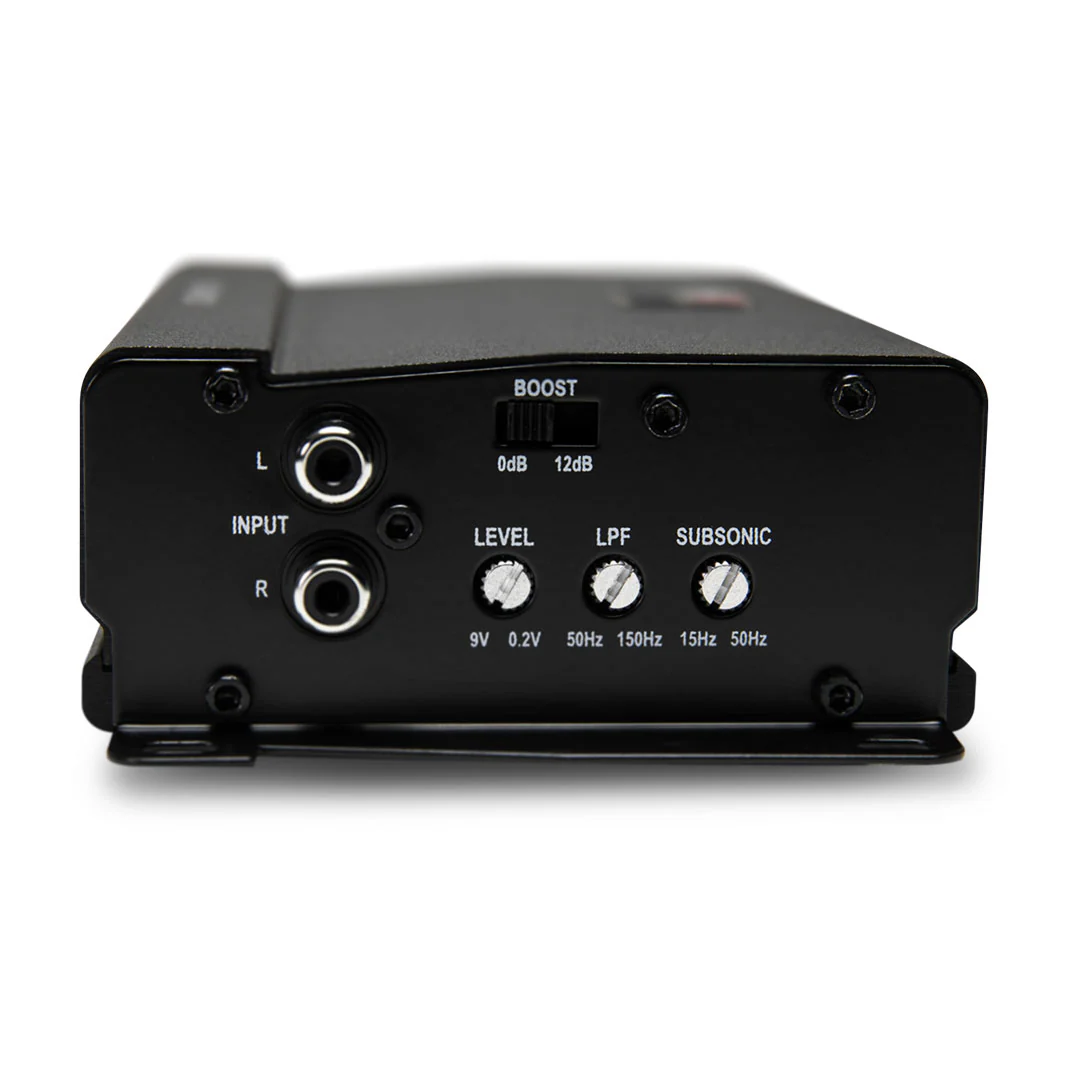

• Amp Bass Boost: 0-12dB @ 45Hz
• Amp Variable Voltage: 0.2-9V
• RCA Inputs: 2 Pair RCA Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• Operation Mode: Mono operation: Designed to power 1 subwoofer or subwoofer system.
• Crossover Type: LPF: Complete control of amplifier signal, essential when using two or more amplifiers.
• Class / Topology: Full Range Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a very small heatsink.
• Output Device Technology: PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
• Heat Sink: Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
• Power Supply: Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

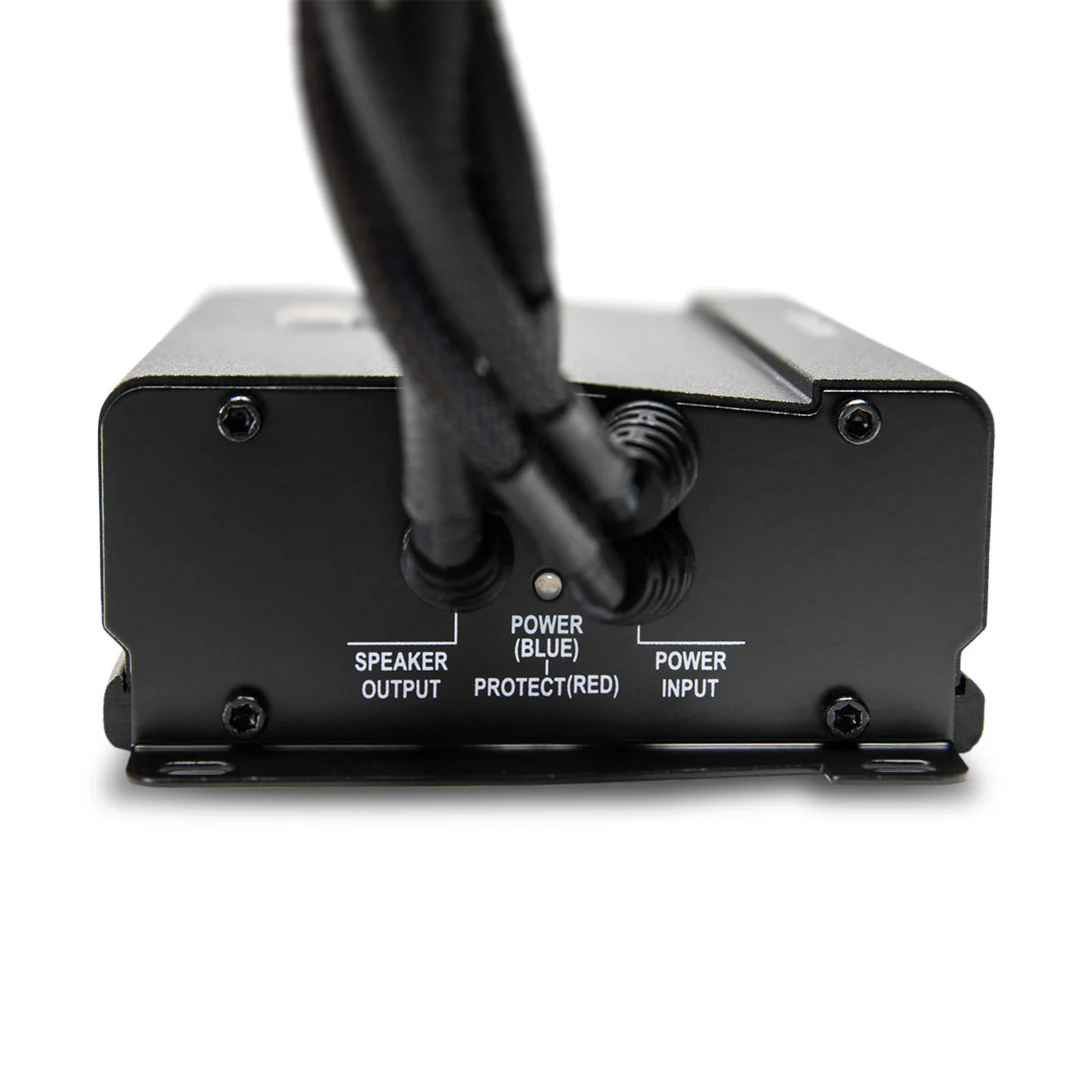

• Output Connections: Quick Disconnect Wires, RCA Connections: Quickly remove amplifier when you are putting machine up for the winter of as a security precaution.
• Connection Type: Nickel-plated connections: Nickel plated corrosion resistant connections.
• LED System Protection Circuitry Diagnostics: Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
