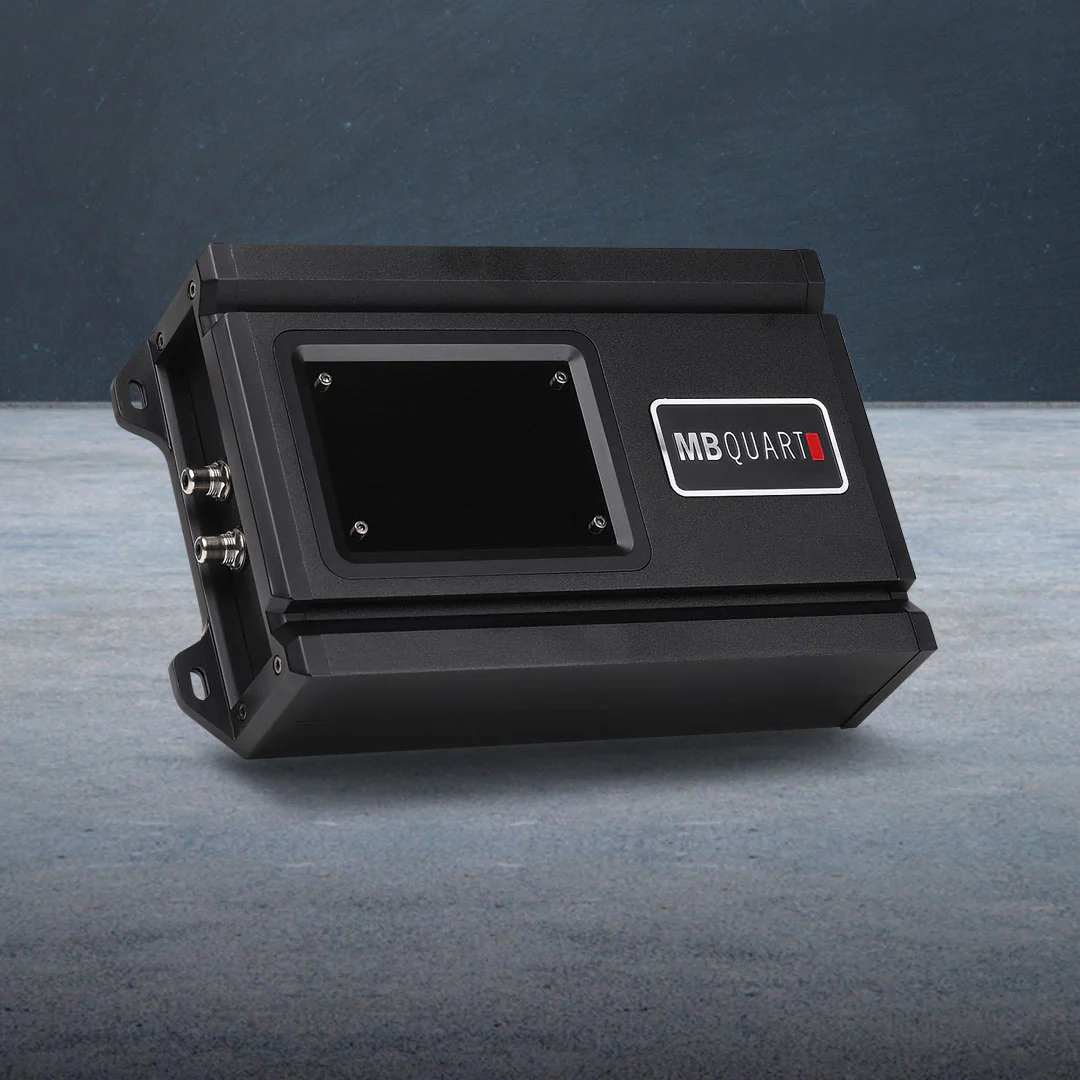

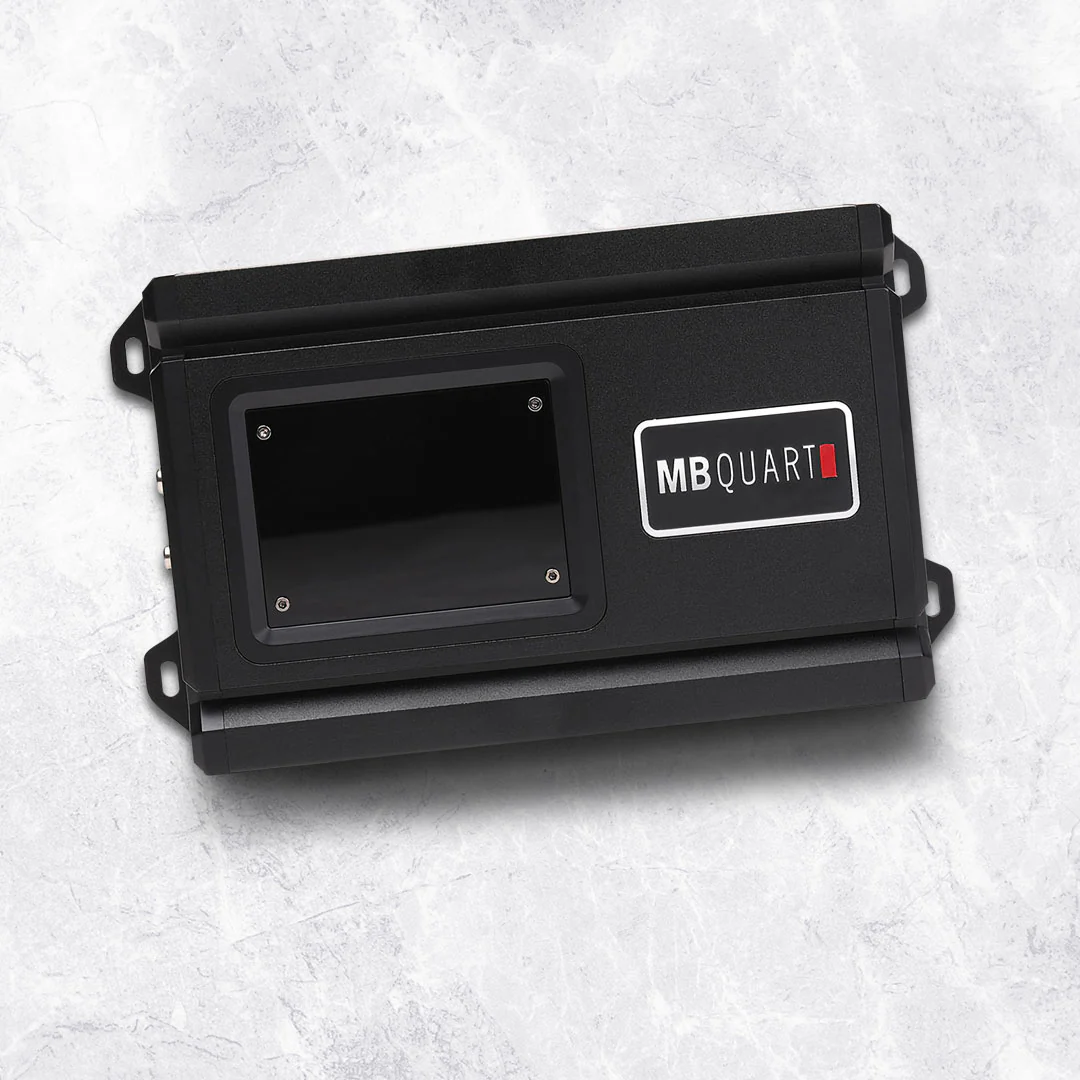

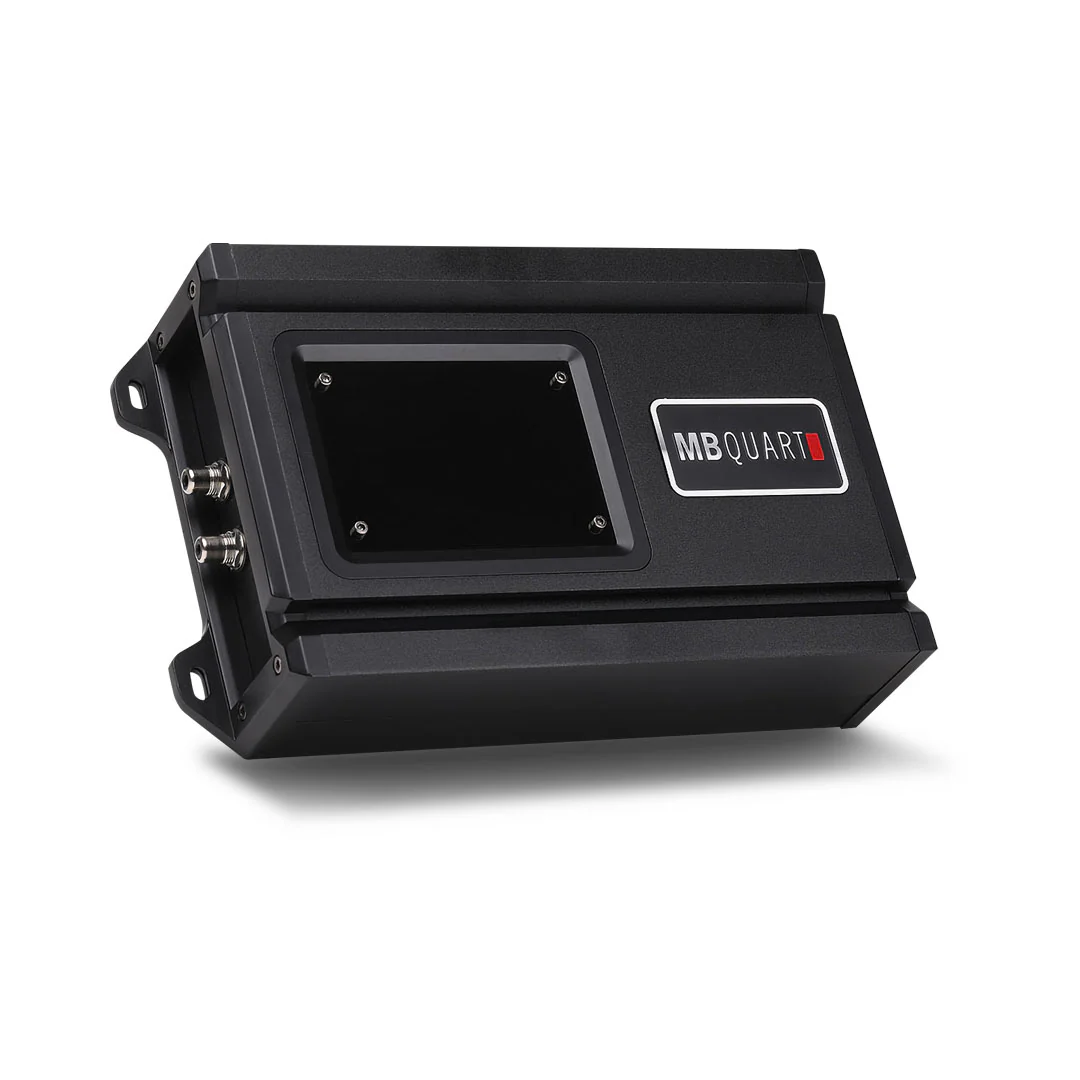

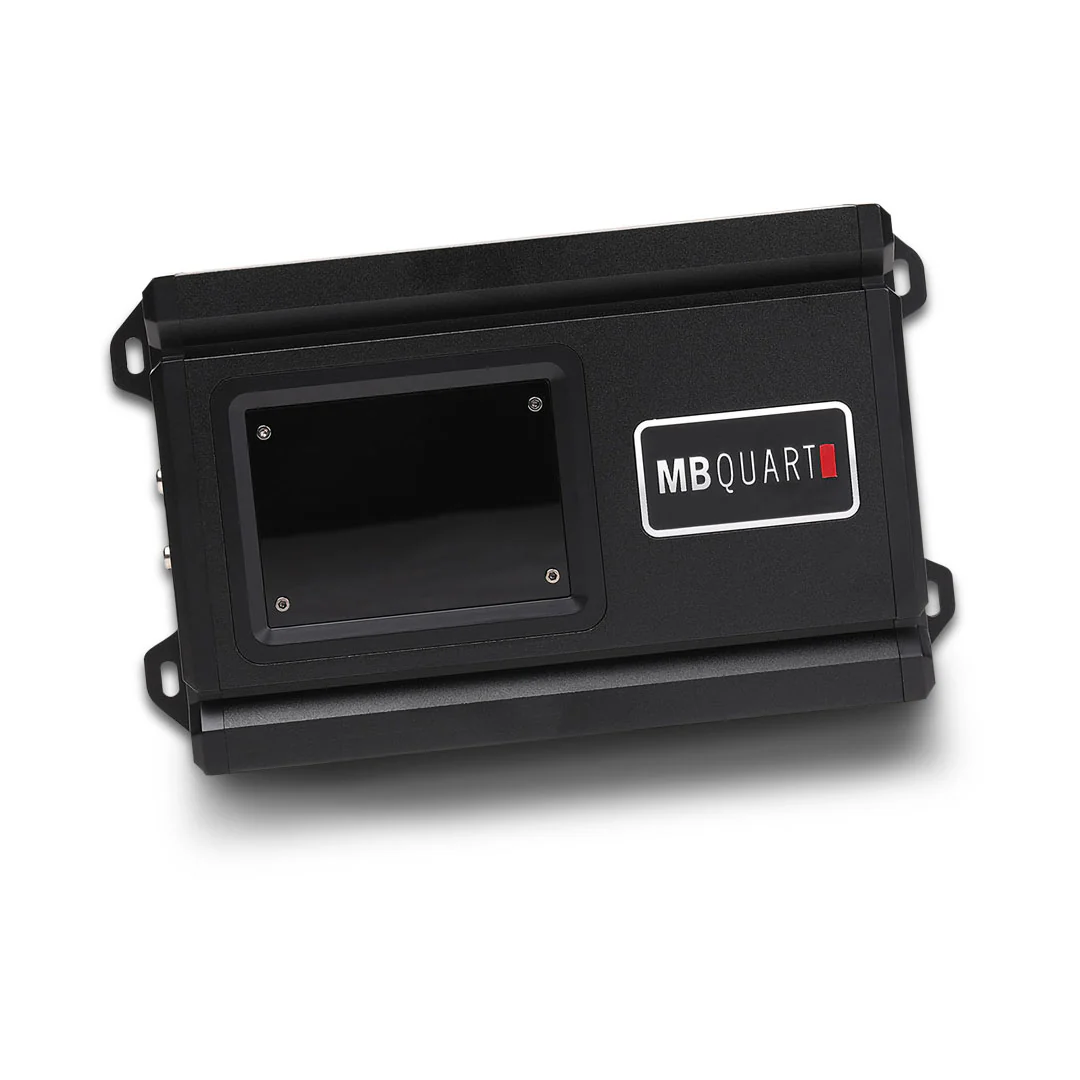

MB Quart MBQ-RA1-150.2 | 75 watt x 2 Reference Amplifier

Elevate Your Sound System with MB Quart's 75W x 2 Amplifier

75 x 2 RMS POWER @ 4 OHMS

Specifications:

• Colour: Black
• Warranty: 2 Years
• Compatible Vehicles: Universal
• Amp Class: Class SQ (Class D)
• Amp Total Channels: 2
• Amp Max Power (watts): 150
• Amp Power @ 1 Ohm (ch x watts): –
• Amp Power @ 2 Ohm (ch x watts): 2 x 100
• Amp Power @ 4 Ohm (ch x watts): 2 x 50
• Amp Mono Bridged @ 4 Ohms (ch x watts): 1 x 200
• Amp Crossover: Electronic
• Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz
• Amp Variable Low Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz
• Amp Speaker Terminal Wire Gauge: 12 AWG
• Amp Fusing: 20A External
• Low Noise Preamplifier Circuit: Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

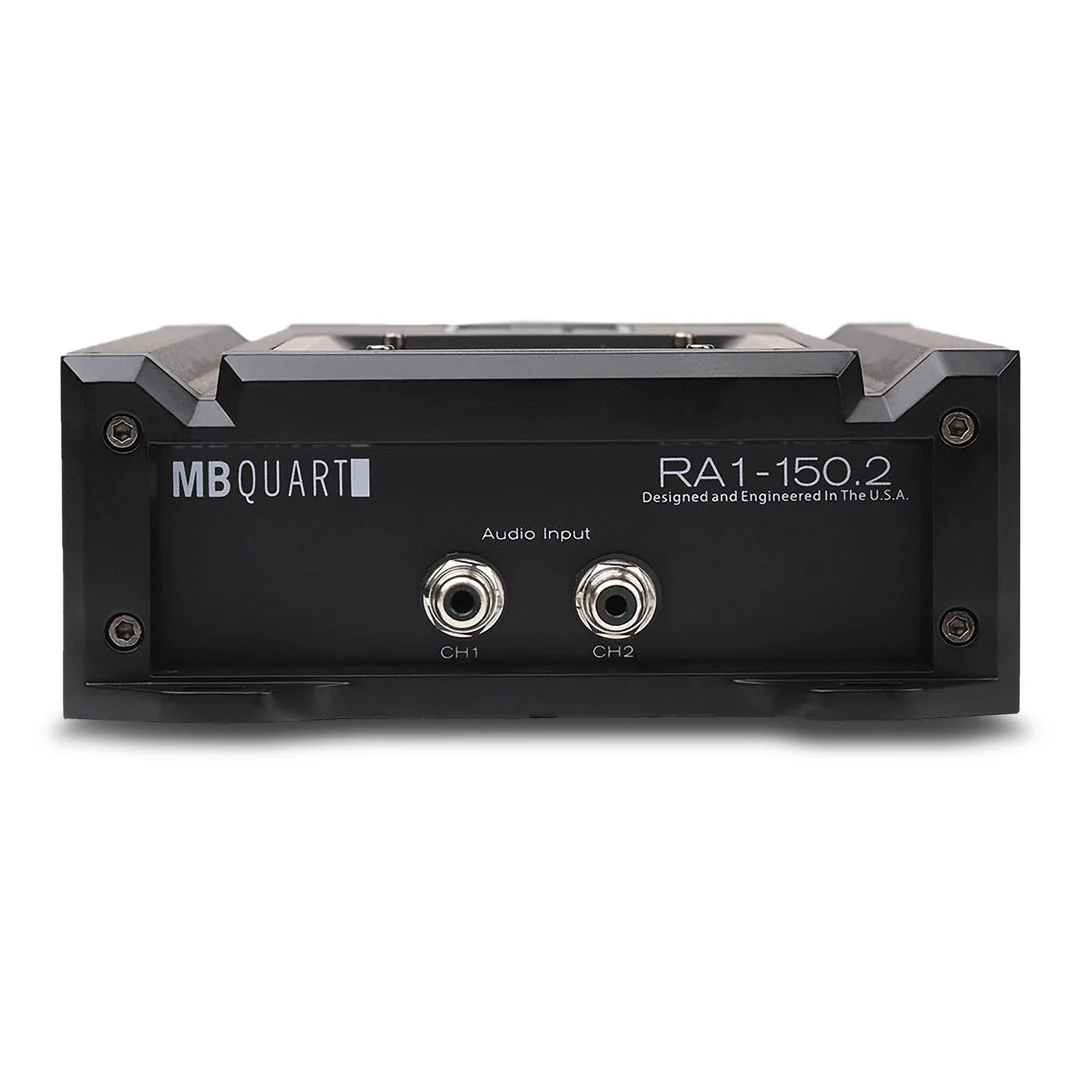

• RCA Inputs: Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• High Level Inputs: See Auto-Sense Feature.
• Operation Mode: 2 Channel

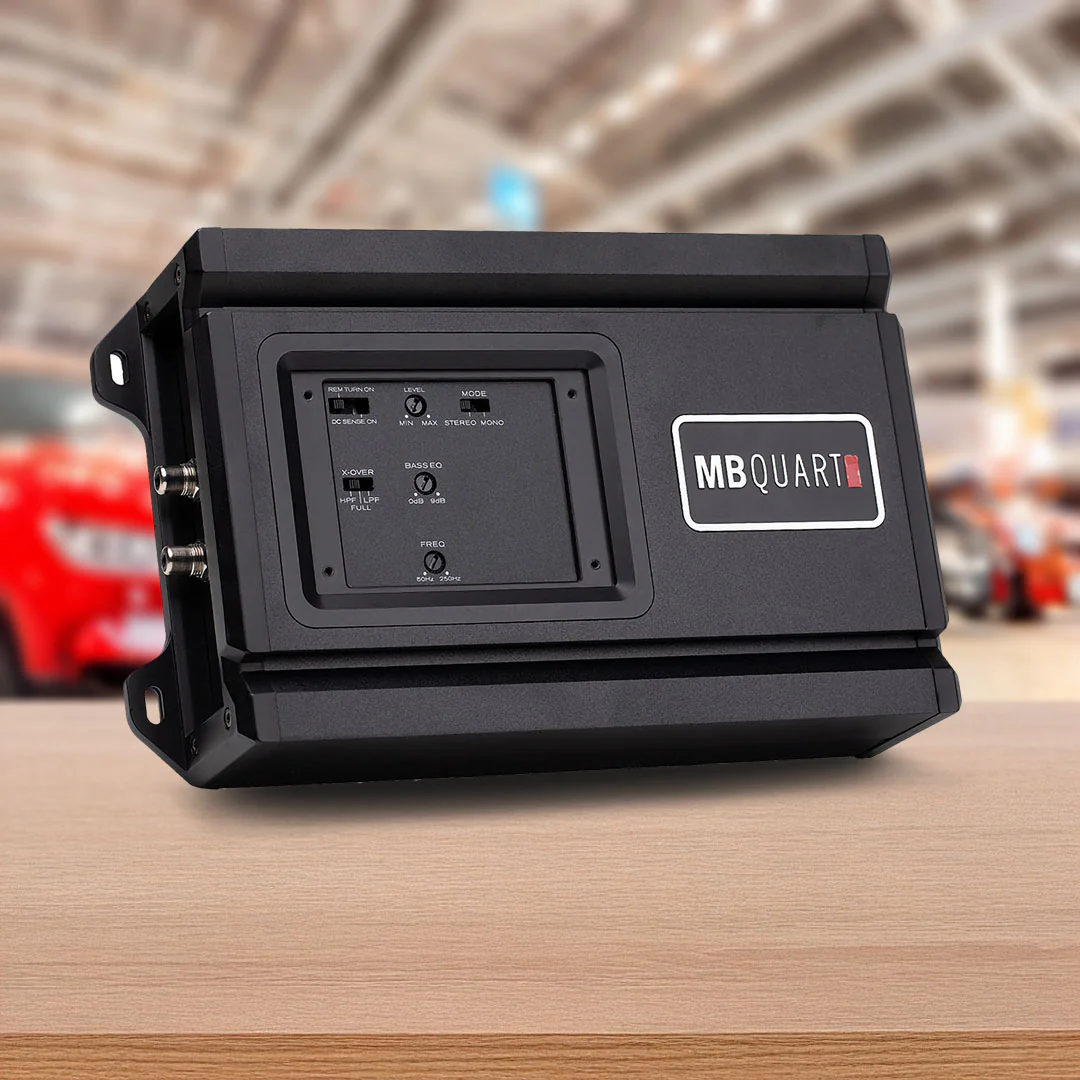

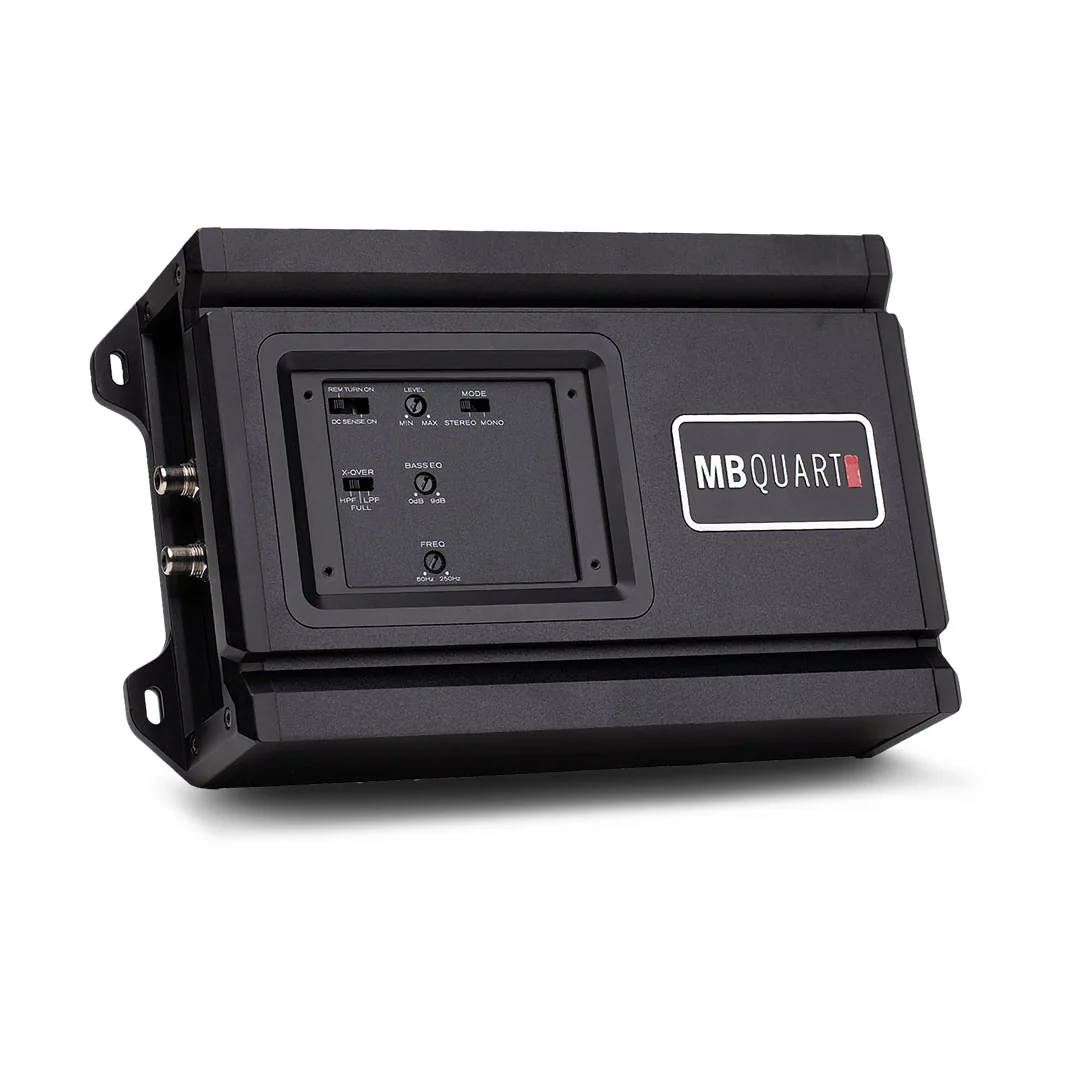

• Crossover Type: Variable electronic crossovers allow for complete control of the sound.
• Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
• Class / Topology: Class SQ: Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class D amplifiers.
• Output Device Technology: FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
• Heat Sink: Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
• Power Supply: Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to produce efficient power without taxing the vehicle electrical system.
• Output Connections: Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier.

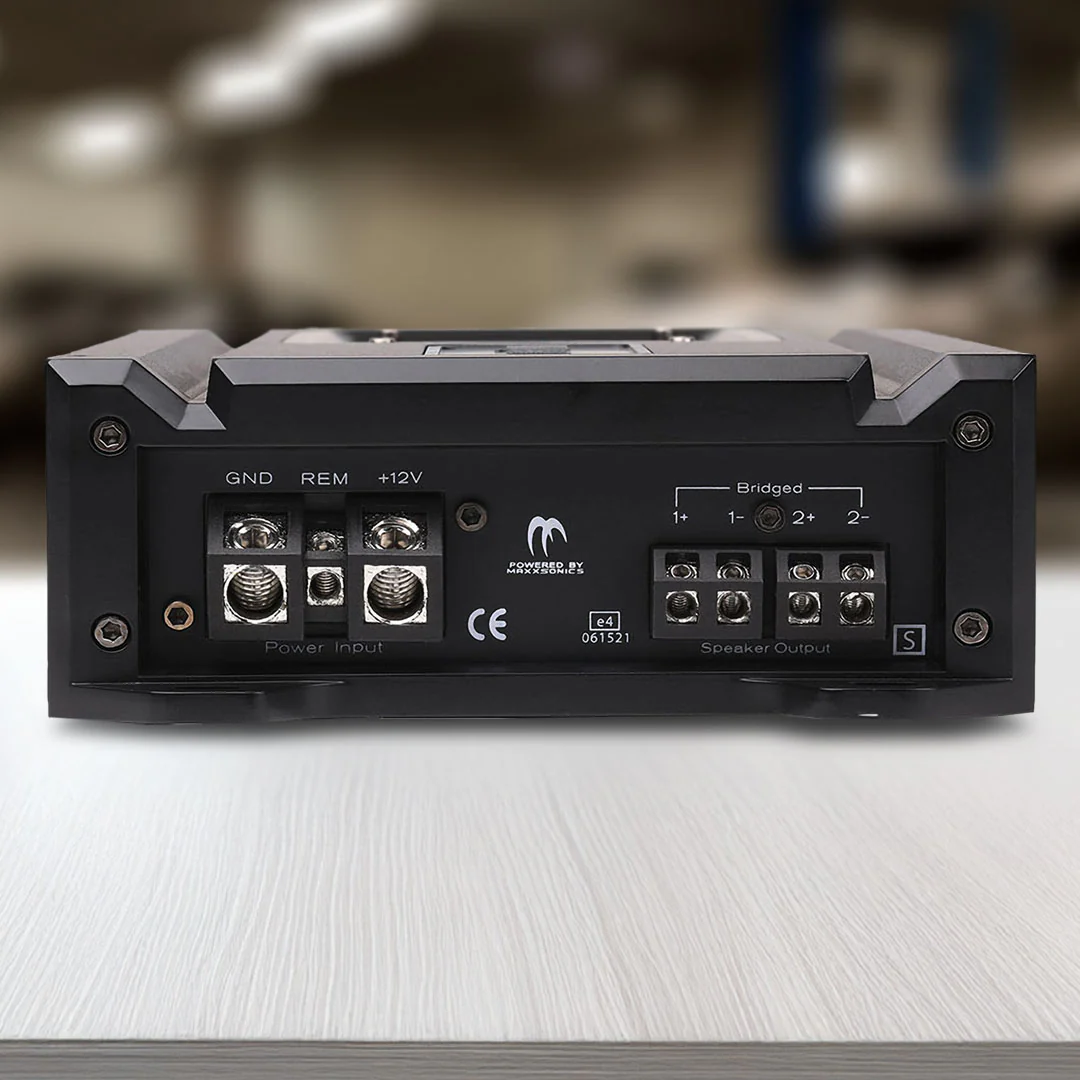

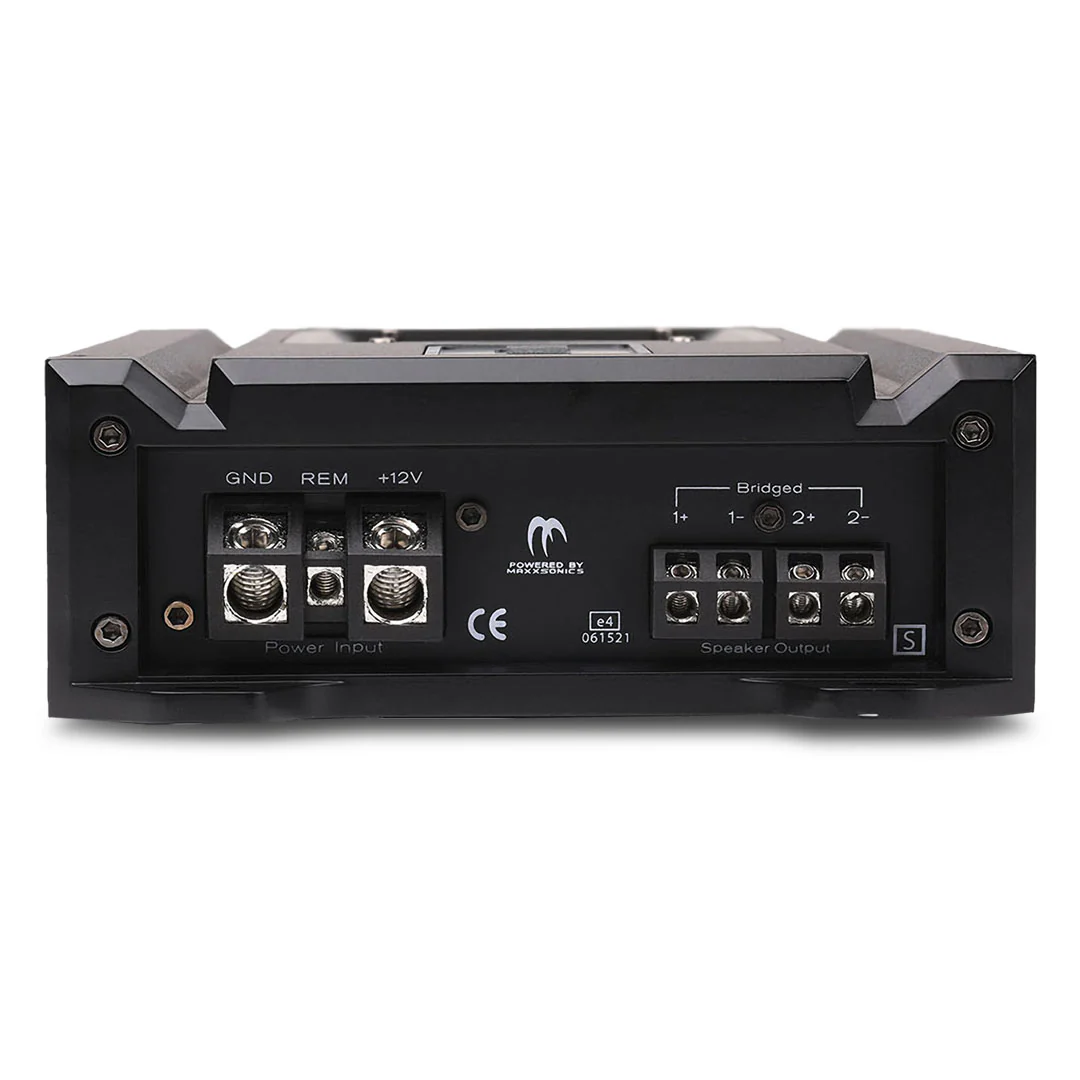

• Connection Type: Secure connection for all power, ground and speaker connections.
• LED System Protection Circuitry Diagnostics: –
• Bass Remote Included: –
• Auto Turn-On: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
