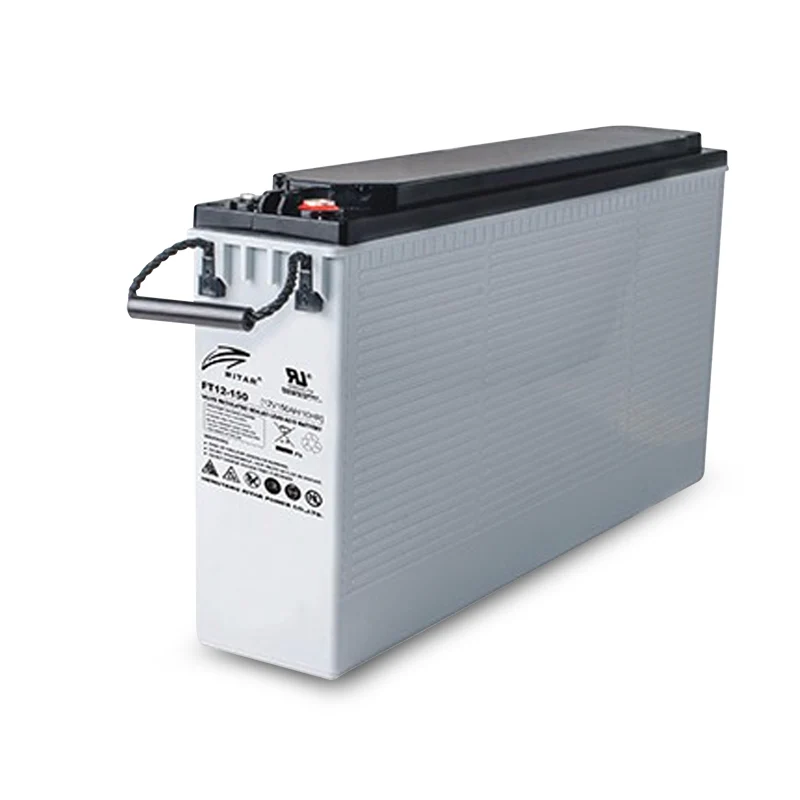

Ritar FT12-150 12V 150Ah Front Terminal Series Battery

Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

12V 150Ah Front Terminal Series Battery

FT (Front Terminal) Series is specially designed for telecom use with 12 years design life in float service. By adopting a new AGM separator and centralized venting system, the battery can be installed in any position while maintaining high reliability. The dimensions of the FT series are designed for 19" and 23" cabinet installation. It i s suitable for telecom EPS/EPS, applications.

Note:

• Old SKU: RA12-150F

Specifications:

• Cells Per Unit: 6
• Voltage Per Unit: 12
• Nominal Capacity: 150Ah@10hr-rate to 1.80V per cell @25℃
• Weight: Approx. 43.5 Kg (Tolerance±3%)
• Internal Resistance: Approx. 5.0 mΩ
• Terminal: F9(M8)
• Max. Discharge Current: 1500A (5 sec)
• Design Life: 12 years (Float charging)
• Max. Charging Current: 45.0 A
• Reference Capacity:
• C3 116.1AH
• C5 131.0AH
• C10 150.0AH
• C20 159.0AH
• Standby Use Voltage:
• 13.6 V~13.8 V @ 25℃
• Temperature Compensation: -3mV/℃/Cell
• Cycle Use Voltage:
• 14.6 V~14.8 V @ 25℃
• Temperature Compensation: -4mV/℃/Cell
• Operating Temperature Range:
• Discharge: -20℃~60℃
• Charge: 0℃~50℃
• Storage: -20℃~60℃
• Normal Operating Temperature Range: 25℃±5℃
• Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
• Container Material A.B.S. UL94-HB, UL94-V0 Optional

Dimensions:

Constant Current Discharge Characteristics : A (25℃)

Constant Power Discharge Characteristics : WPC (25℃)
