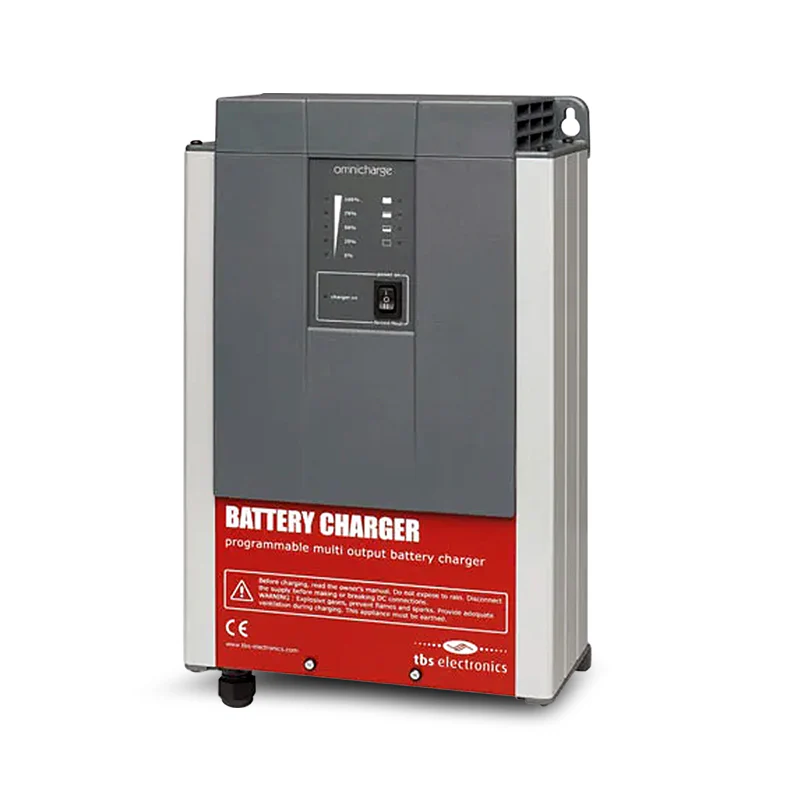

TBS Electronics 5026220 Omnicharge 24/20A Battery Charger

Energy Efficient Battery Charger

A unique active rectifier output stage ensures unmatched efficiency figures. Combined with active PFC, the Omnicharge battery chargers are very energy efficient. This will reduce running costs and guarantees a maximum charge current per AC Watt. All Omnicharge battery chargers are equipped with advanced 4 stage charging algorithms and temperature compensation. Users are also allowed to create a custom charging algorithm for their specific battery, with the TBS “Dashboard” software. The standard available TBSLink port enables remote control and readout via the optional TBS Universal Remote Panel. All Omnicharge units are easy to install and come standard with temperature sensor and a very clear installation and operating instruction.

Features:

• Two battery outputs
• Robust industrial design
• Designed for continuous duty charging
• Very efficient
• Universal power factor corrected auto ranging AC
• input
• No charge current derating at 115VAC input
• Protected against battery failure, high
• temperature, overload, short circuit, low input
• voltage and reverse polarity (fuse)
• Multistage intelligent charging programs
• Programmable charging programs up to 8 stages
• Protects the battery from being overcharged
• Variable speed fan for silent operation
• Remote on/off capability
• Alarm relay (optional Alarm Output Expander
• available)
• Remote control capability via TBSLink
• Easy to access connection bay for installing AC-,
• DC and control wiring
• Temperature sensor included
• CE certified

Applications:

• Recreational vehicles
• Marine applications
• Industrial systems
• Mobile entertainment systems
• Service vehicles
• Remote homes

Accessories:

• Universal Remote Control with LCD
• Basic Remote Control with LEDs
• DC cable kits
• TBSLink communication kit including software
• Alarm output expander

Specifications:

• Input voltage 100-260Vac / 47-63Hz / PF ³ 0.95
• Full load consumption 700VA
• AC input current (115V/230V) 6A/3A
• Full load efficiency 89%
• Nominal output voltage 24Vdc
• Total output current (Aux.) 20A(2.5A)
• Charge characteristic IUoUoP, intelligent 4-stage, temperature compensated
• Absorption voltage 28.8Vdc
• Float voltage 27.0Vdc
• Equalize voltage 31.0Vdc
• Supported Battery types Flooded / GEL / AGM / LiFePO4 / Custom
• Recommended battery capacity 50-200Ah
• DC current draw (charger off) £ 4mA
• Operating temp. range -20°C … +50°C (humidity max. 95% non condensing)
• Storage temp. range -40°C … +80°C (humidity max. 95% non condensing)
• Cooling Variable speed fan controlled by temperature and load
• TBSLink enabled Yes
• Protected against Low AC voltage, output short circuit, high temperature, battery overcharging and reverse polarity (fuse)
• Indications Power on, output current bar, state of charge bar, error
• DC output connections M8 bolts (main output), Screw terminals (auxiliary output)
• AC input connections Screw terminals
• Enclosure body size 351 x 210 x 114mm
• Total weight 5.8 kg
• Protection class IP21 (mounted in upright position)
• Standards CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC complying with EN60335-1, EN60335-2-29
