Ultra Vision UV-VWAPAM-KIT Behind Grille Light Bar Kit To Suit VW Amarok 2023-on Style, PanAmericana & Aventura Models

Ultra Vision Behind Grille Light Bar Kit To Suit VW Amarok 2023-on Style, PanAmericana & Aventura Models: No Bull Bar? No Problem!

Light up the night with Ultra Vision and our specifically designed Behind Grille Light Bar Kit for Style, Pan Americana & Aventura models.

The purpose-built bracket system positions your choice of either one or two light bars behind the grille and mounts to the bumper framework. This results in a very solid fitment so there’s no shaking when you’re out driving on rough roads.

When installing, only the grille shroud beneath the bonnet needs to be removed for temporary access.

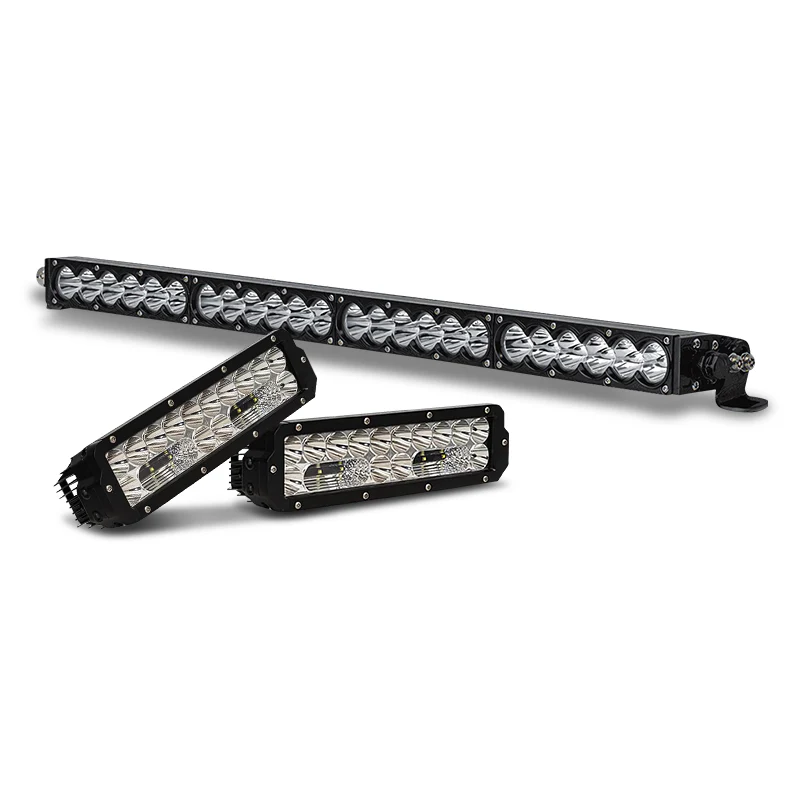

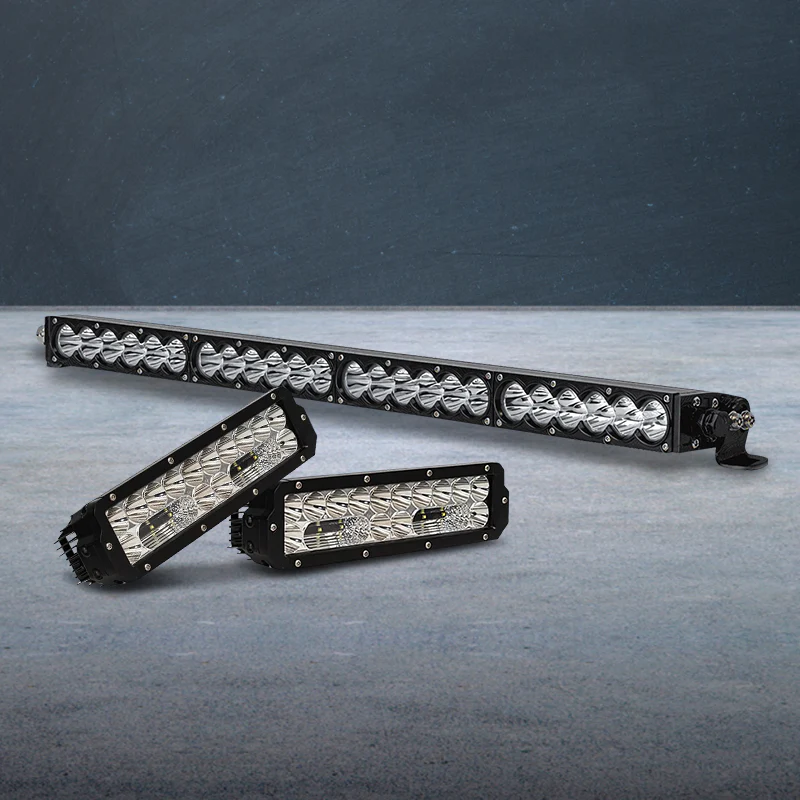

Choose from Light Bar Options Below (all 5700K colour temperature):

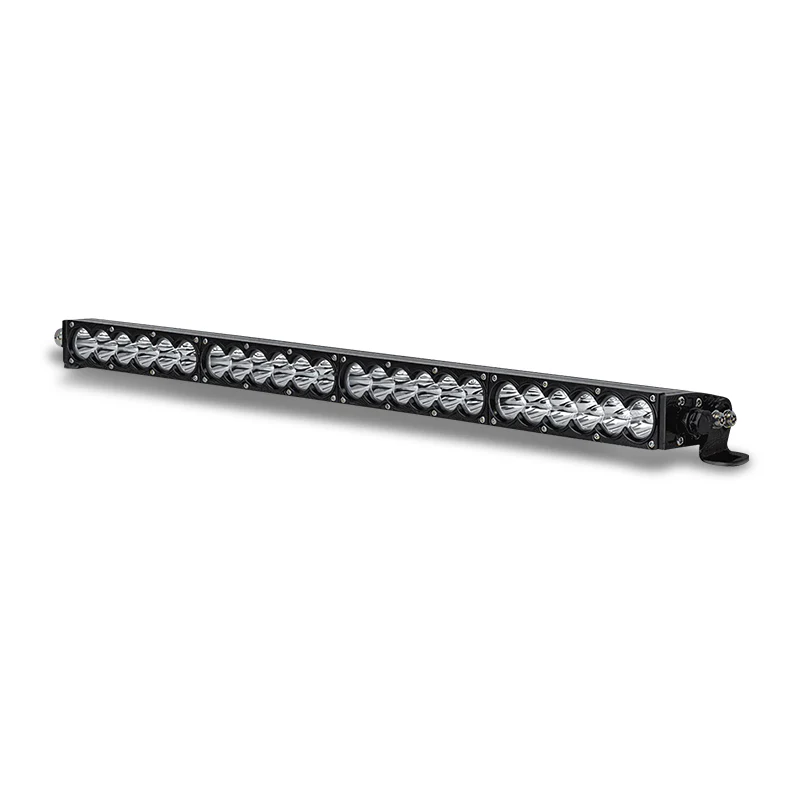

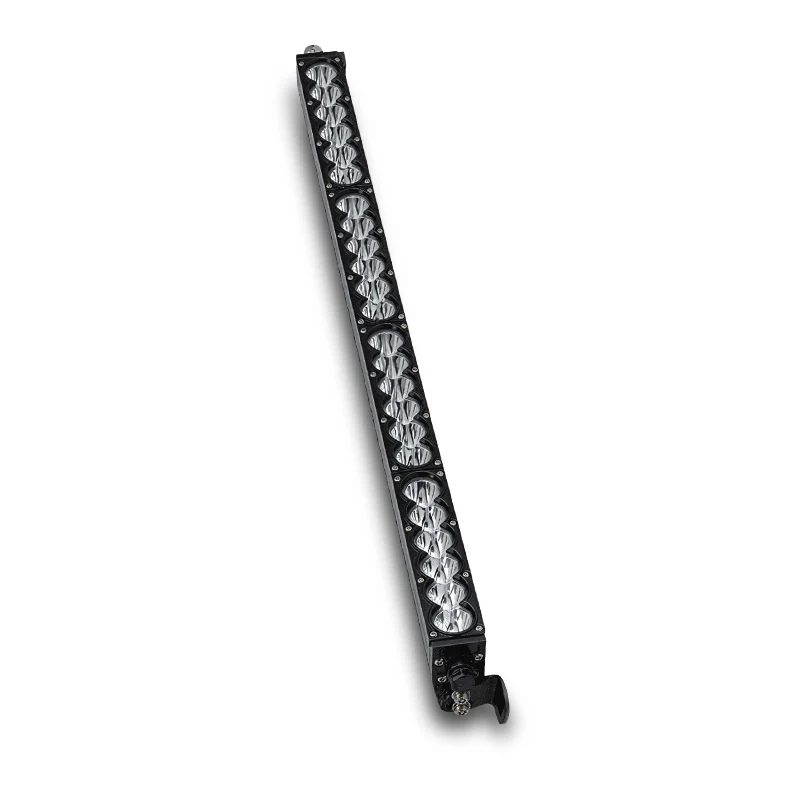

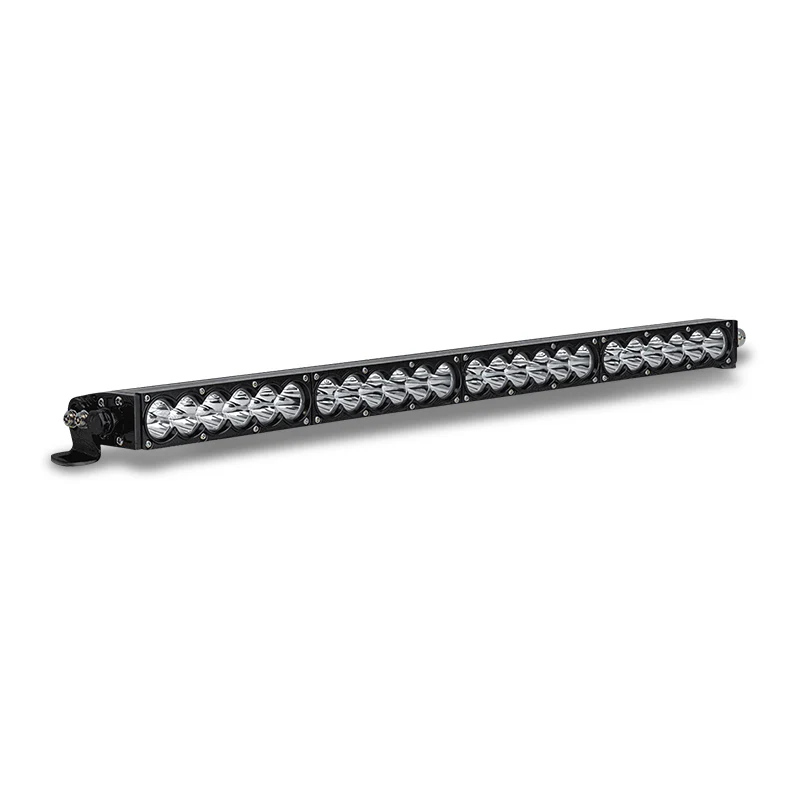

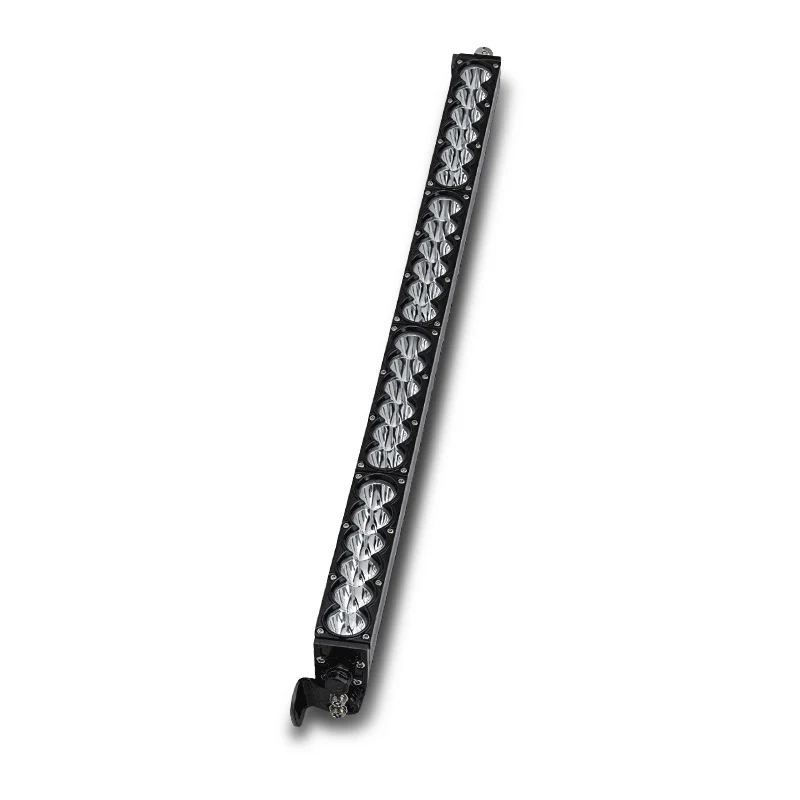

• 1 x Raptor 165w 26.5-Inch LED Light Bar

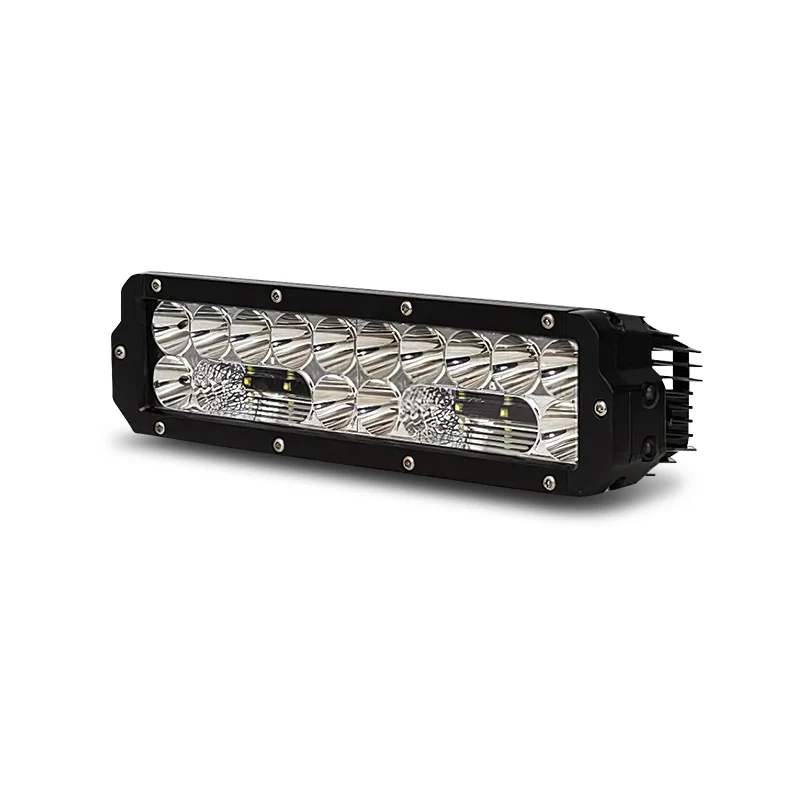

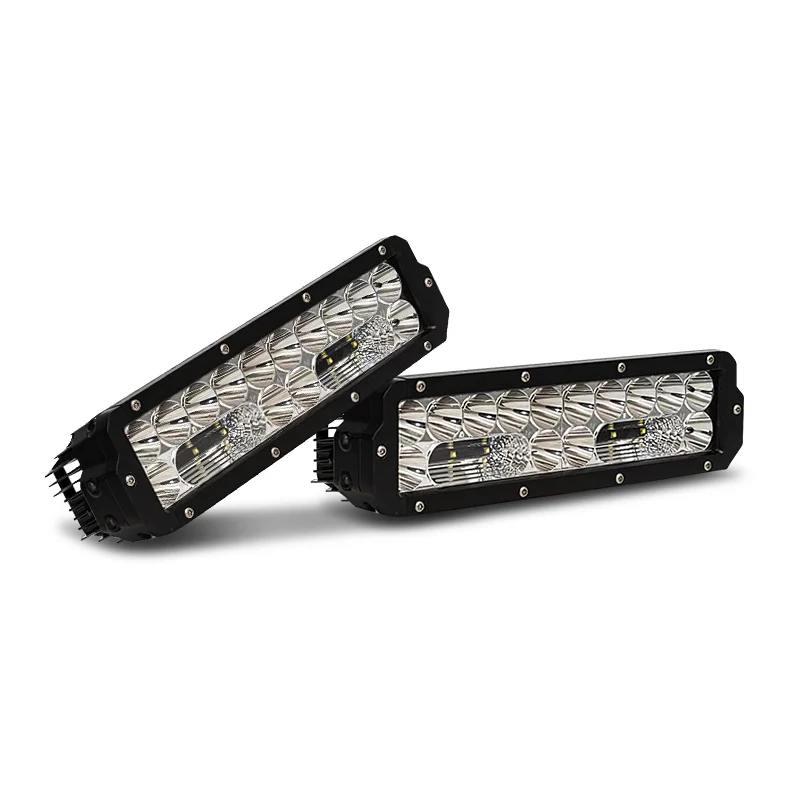

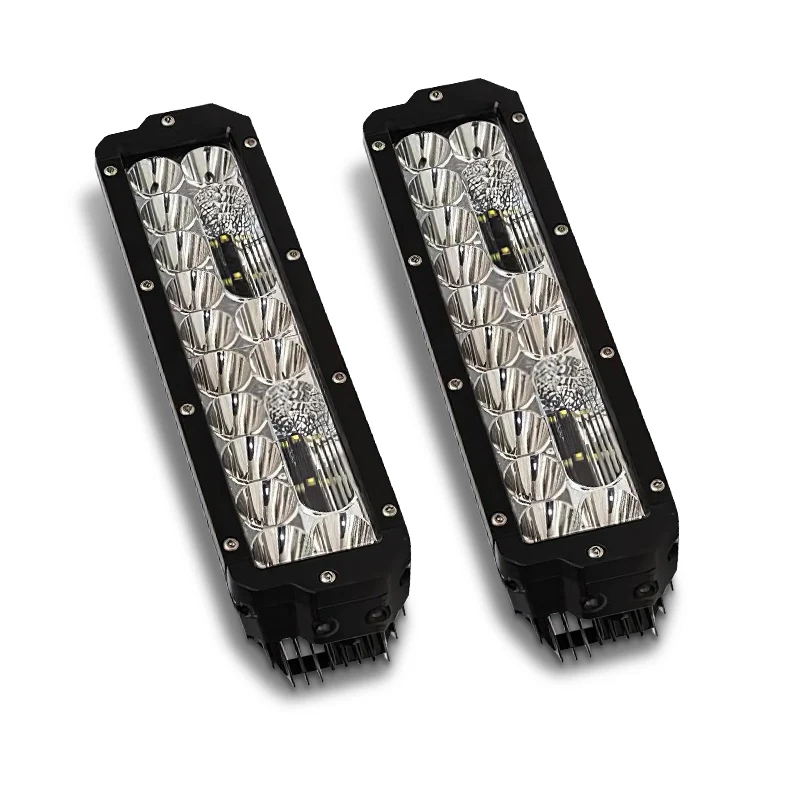

• 2 x Nitro Maxx 105w 13-Inch LED Light Bars

Ultra Vision UV-VWAPAM-KIT Features:

• Designed specifically for VW Amarok NF 2023-on Style, PanAmericana & Aventura Models
• No bull bar required
• No cutting or drilling required
• Choose from Raptor or Nitro Maxx Light Bar options
• Brackets powder-coated black for sleek design and rust preservation
• Designed and made in Australia

Ultra Vision UV-VWAPAM-KIT Specifications:

Light Bar Specs (1x Light Bar)	Raptor 165w	Nitro Maxx 105
Wattage	165 Watts	100 Watts
Light Source	24 High Power LEDs	20 x 5w LED's
Light Output – Raw	18,609 Lumens	12,320 Lumens
Light Output – Effective	15,240 Lumens	8,865 Lumens
Voltage	9-36V	9-36V
Current Draw	13A	8A
Operating Temperature	-40 to 80 Deg C	-40 to 80 Deg C
Waterproof Rating	IP67	IP68
Connector Type Plugs	2 Pin heavy duty Deutsch	2 Pin heavy std Deutsch
Housing	Aluminium	6063 T5 Aluminium
Lens Construction	Polycarbonate	Polycarbonate
Brackets	Side Mount Brackets	Sliding Base / Side Mounts
Colour Temperature	5700K	5700K
Lifespan	50,000 Hours	50,000 Hours
Dimensions	679 x 45 x 73mm	324 x 92 x 84mm
Net Weight	2.3 kg	1.9kg
Beams Available	Spot	Combo and Widr
Warranty	3 Years	5 Years

What's In The Box:

• 1x Raptor or 2x Nitro Maxx or Light Bar/s of your choice.
• 1x Wiring harness to suit
• 1x Purpose-built VW Amarok behind-grille black powder-coated bracket kit
• 1x Mounting hardware kit (nuts, bolts, and brackets)
• Fitting and wiring instructions

Note: Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
